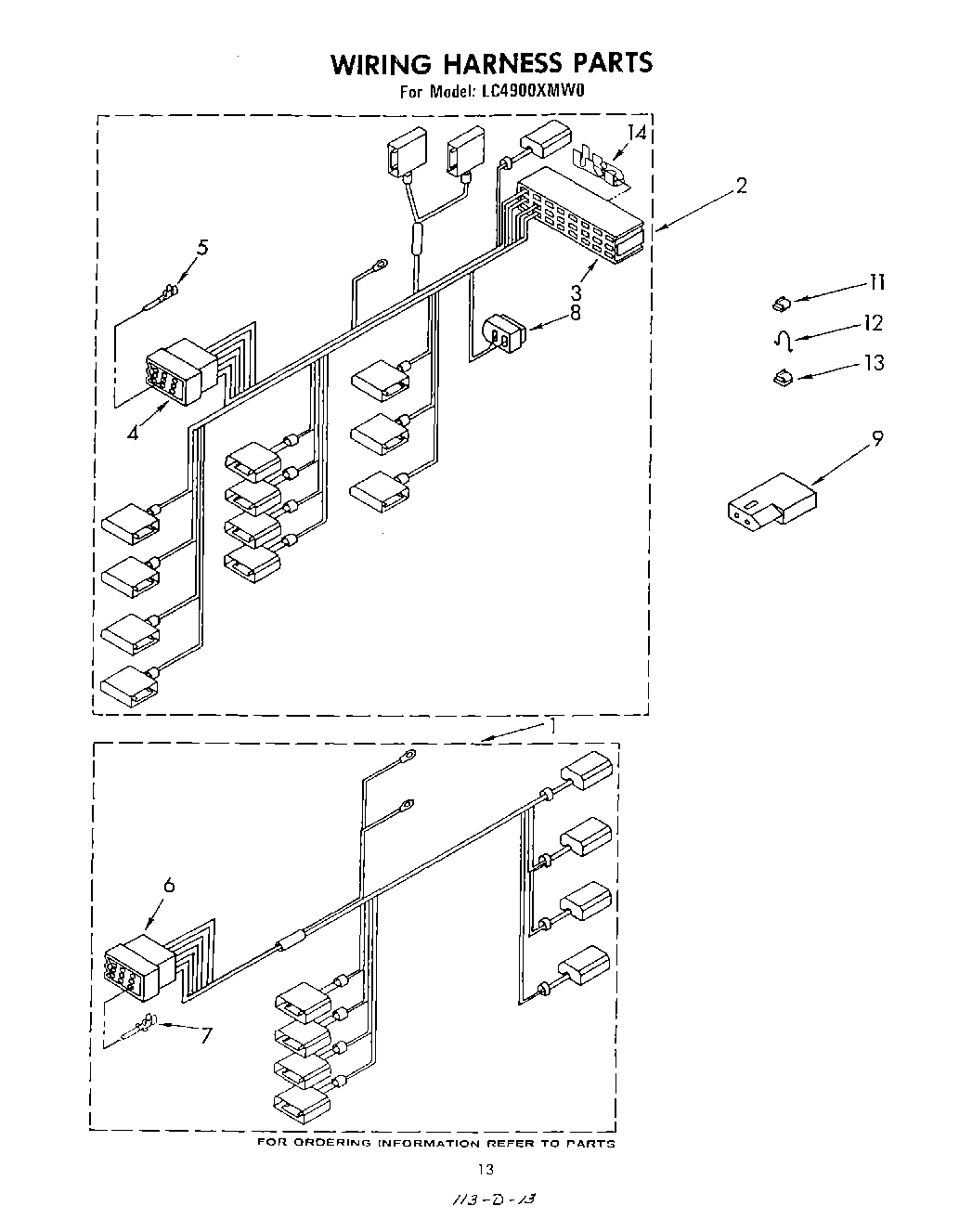

LC4900XMW0 11 – WIRING HARNESS

Products

Position	Product
1	Harness, Lower
2	Harness, Upper
3	W10876590 Whirlpool Connector
4	Plug, Terminal (Cabinet Harness)
5	WP94614 Whirlpool Terminal
6	Cap, Terminal (Console Harness)
7	WP596797 Whirlpool Terminal
8	WP717253 Whirlpool Dishwasher Connector
9	Receptacle, Latching (2-Way) (Uses Terminal 94614)
11	Clip, Harness
12	Clip, Harness (2)
13	WP90016 Whirlpool Clip
14	Terminal, Female
