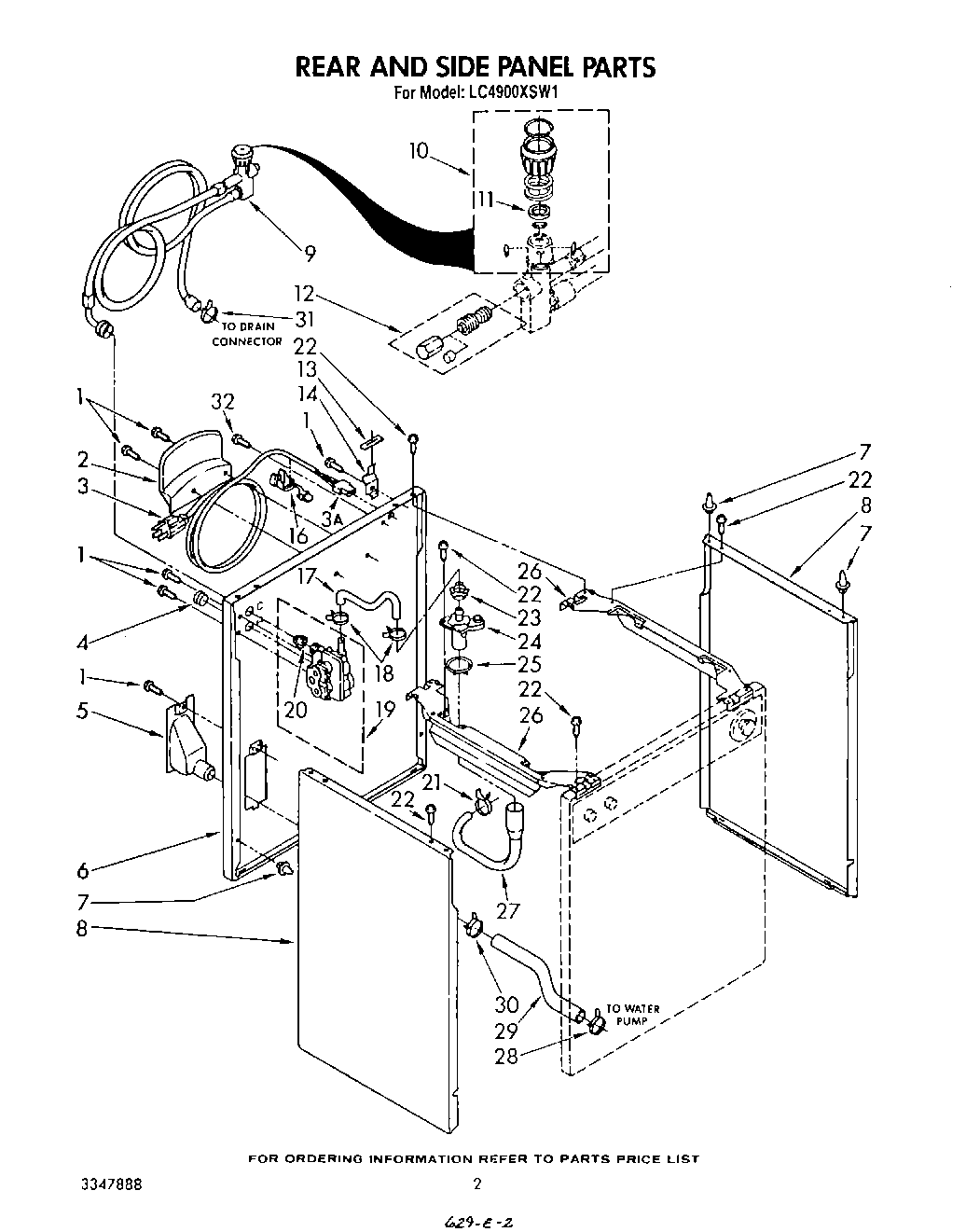

LC4900XSW1 02 – REAR AND SIDE PANEL , LITERATURE AN

Products

PositionProduct
WPL LIT385238
WPL LIT3348302
Golden Harvest
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT3347888
WP285195 Whirlpool Sealer Assembly
WPL LIT387747
WPL LIT387422
72113 Whirlpool Touch-Up Paint
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Golden Harvest (Uncut)
350572 Whirlpool Oil Transmission 15 Oz
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350956 Whirlpool Spray Assembly
1WP3390631 Whirlpool Screw
2Bracket, Hose Storage
3Cord, Power (Includes Illus. 3A)
3Receptacle, 3-Way Terminal (Use W/94614)
4WP356054 Whirlpool Cap Assembly
5WPW10358149 Whirlpool Hose
6Panel, Rear (White Model)
6Panel, Rear (Almond Model)
6Panel, Rear (Golden Harvest)
6Panel, Rear (Platinum)
6Panel, Rear (Toast)
7Locator, Top
8Panel, Side (2) (White)
8Panel, Side (2) (Toast)
8Panel, Side (2) (Platinum)
8Panel, Side (2) (Golden Harvest)
8Panel, Side (2) (Almond)
9WPW10187809 Whirlpool Dishwasher Filter and Drain Hose
10WP285170 Whirlpool Collar
11Seal
12Valve, Pressure Relief
1318849 Whirlpool Pad
14Hinge (L.H.)
16Strain Relief, Power Cord
17Hose, Water Inlet
18WP596669 Whirlpool Hose Clamp
19285805 Whirlpool Washer Water Inlet Valve
20WP96160 Whirlpool Washer Inlet Valve Screen
21Clamp, Hose
2260001022 Whirlpool Oven Screw
23WP356471 Whirlpool Cap
24WP356363 Whirlpool Siphon Break
25WP616099 Whirlpool Clamp
26Brace, Tie (2)
27Hose, Siphon Break
28WP285655 Whirlpool Hose Clamp
29Hose, Pump Drain
30WP356138 Whirlpool Hose Clamp
32SCREW
