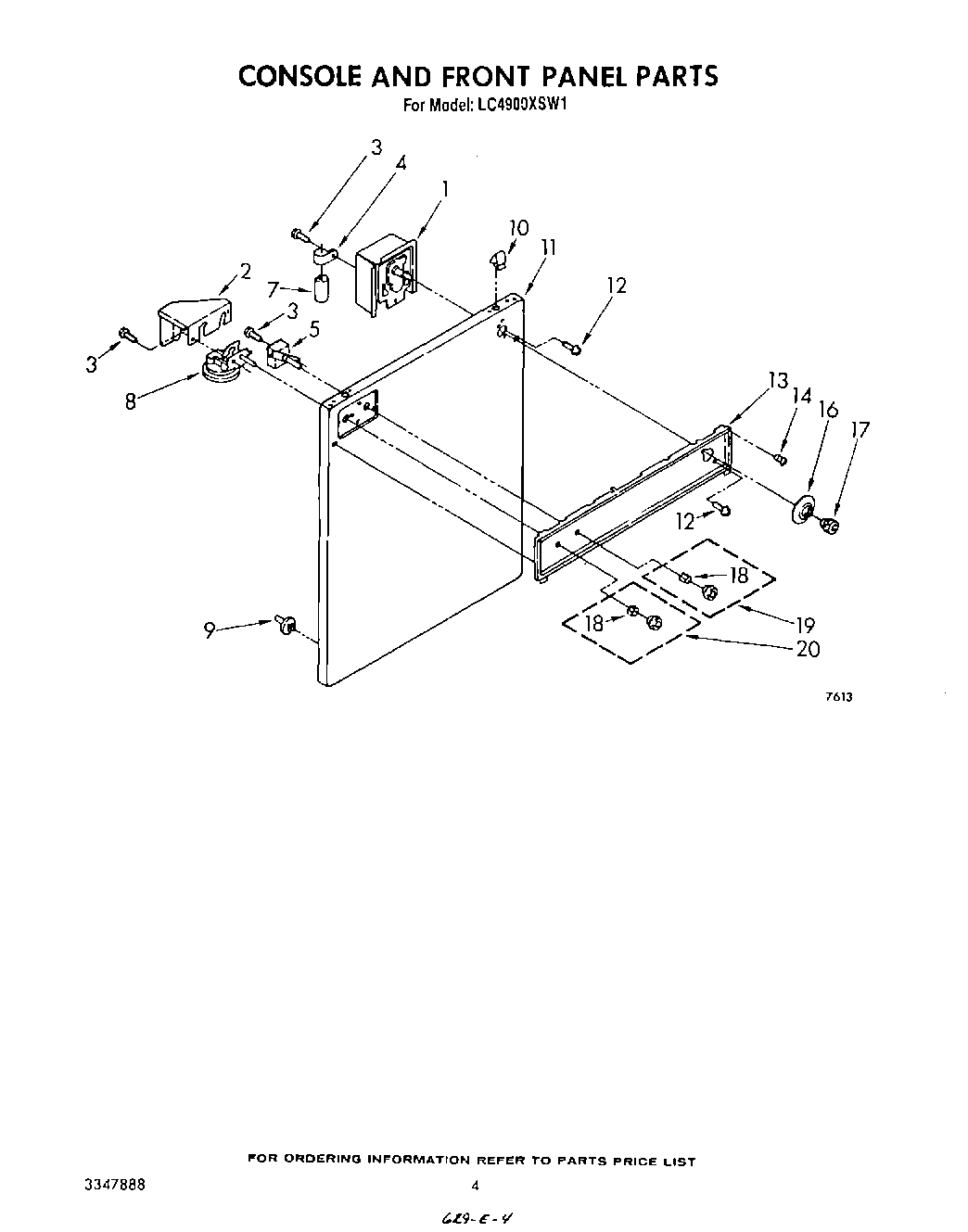

LC4900XSW1 03 – CONSOLE AND FRONT PANEL

Products

Position	Product
1	Timer, 60 Hz. (Serviced Only As A Complete Assembly. Timer Motor Is Non Serviceable.)
2	Shield, Control
3	Screw, 8-18 x 5/16
4	357030 Whirlpool Clamp
5	Switch, Water Temperature
7	CAPACITOR
8	Switch, Water Level
9	Locator, Top
10	Lock, Front Top
11	Panel, Front (White Model)
11	Panel, Front (Almond Model)
11	Panel, Front (Golden Harvest)
11	Panel, Front (Toast)
11	Panel, Front (Platinum)
12	WP356418 Whirlpool Screw
13	Panel, Console
14	Rivet
16	Dial, Timer
17	WPL 3347726
18	WP688805 Whirlpool Spring Clip
19	Knob & Skirt (Water Temperature)
20	Knob & Clip, Water Level
