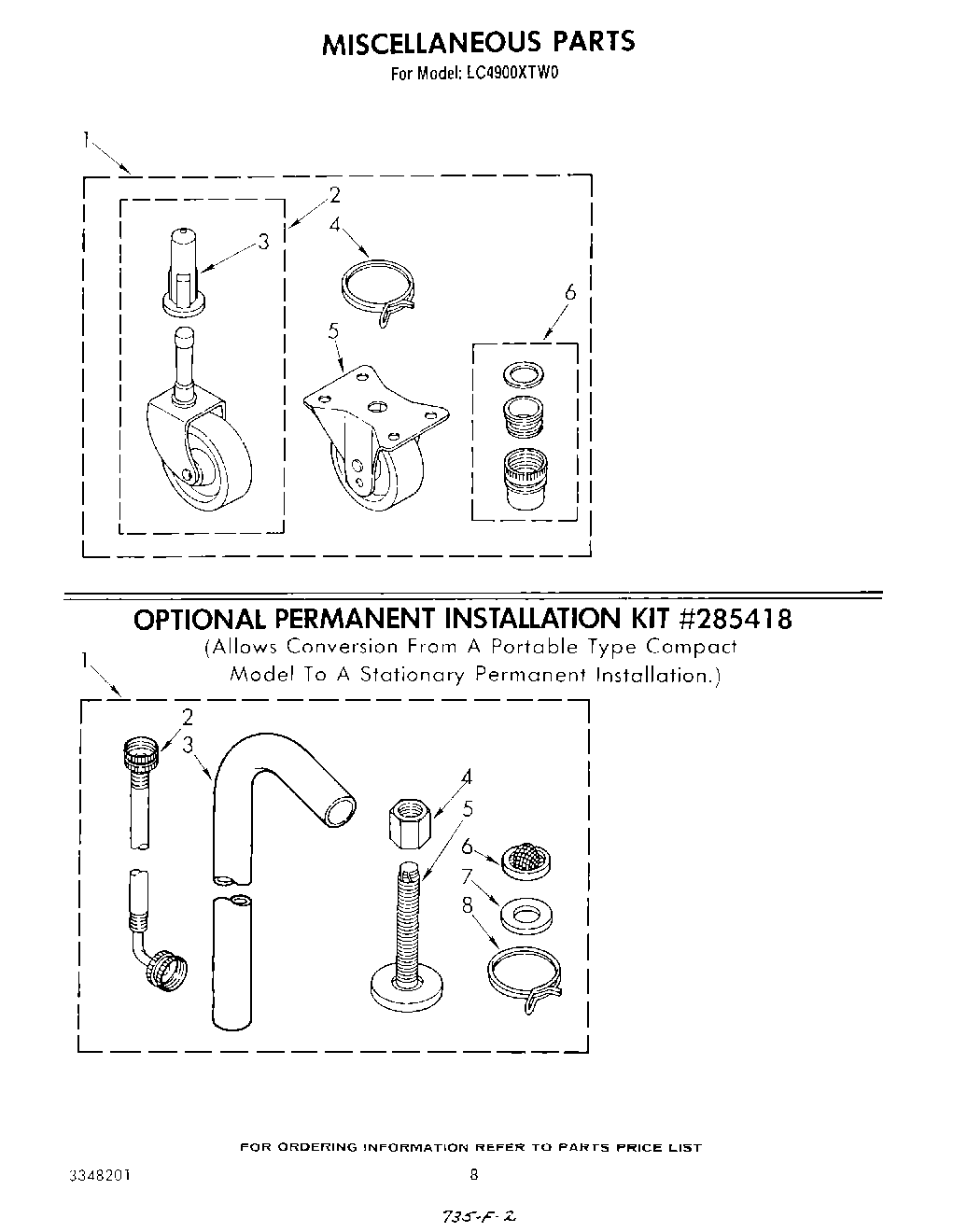

LC4900XTM0 07 – MISCELLANEOUS , PERMANENT INSTALLATION

Products

PositionProduct
1Miscelleous Parts Bag
1Conversion Kit, Permanent Installation
2WP3370639 Whirlpool Caster
2WP76314 Whirlpool Fill Hose
3WP96743 Whirlpool Hose
3Socket, Caster (Alternate)
4WP285655 Whirlpool Hose Clamp
4WP62739 Whirlpool Nut
5WPW10001130 Whirlpool Leveling Leg
5Wheel, Front (2)
6285452A Whirlpool Hose Seal and Screen
6WPW10254672 Whirlpool Faucet Adapter
7WP16123 Whirlpool Washer
8WP356138 Whirlpool Hose Clamp
