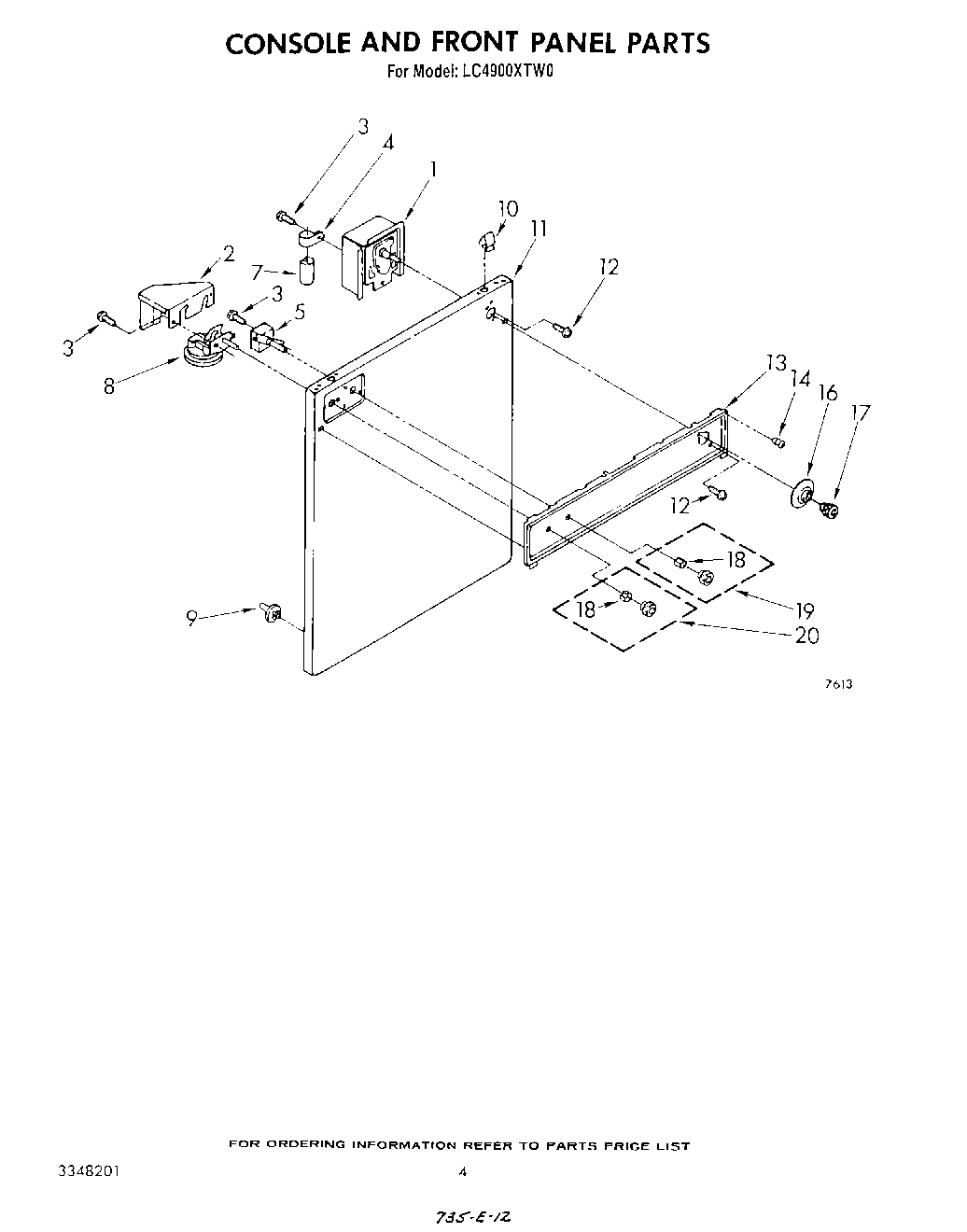

LC4900XTN0 03 – CONSOLE AND FRONT PANELadmin2025-04-26T12:06:32+00:00LC4900XTN0 03 – CONSOLE AND FRONT PANEL
Products
| Position | Product |
|---|
| 1 | Timer, 60 Hz. (Serviced Only As A Complete Assembly. Timer Motor Is Non Serviceable.) |
| 2 | Shield, Control |
| 3 | Screw, 8-18 x 5/16 |
| 4 | 357030 Whirlpool Clamp |
| 5 | Switch, Water Temperature |
| 7 | CAPACITOR |
| 8 | Switch, Water Level |
| 9 | Locator, Top |
| 10 | Lock, Front Top |
| 11 | Panel, Front (White Model) |
| 11 | Panel, Front (Almond Model) |
| 11 | Panel, Front (Golden Harvest) |
| 11 | Panel, Front (Toast) |
| 11 | Panel, Front (Platinum) |
| 12 | WP356418 Whirlpool Screw |
| 13 | Panel, Console |
| 14 | Rivet, Plastic (4) |
| 16 | Dial, Timer |
| 17 | WPL 3347726 |
| 18 | WP688805 Whirlpool Spring Clip |
| 19 | Knob & Skirt (Water Temperature) |
| 20 | Knob & Clip, Water Level |
