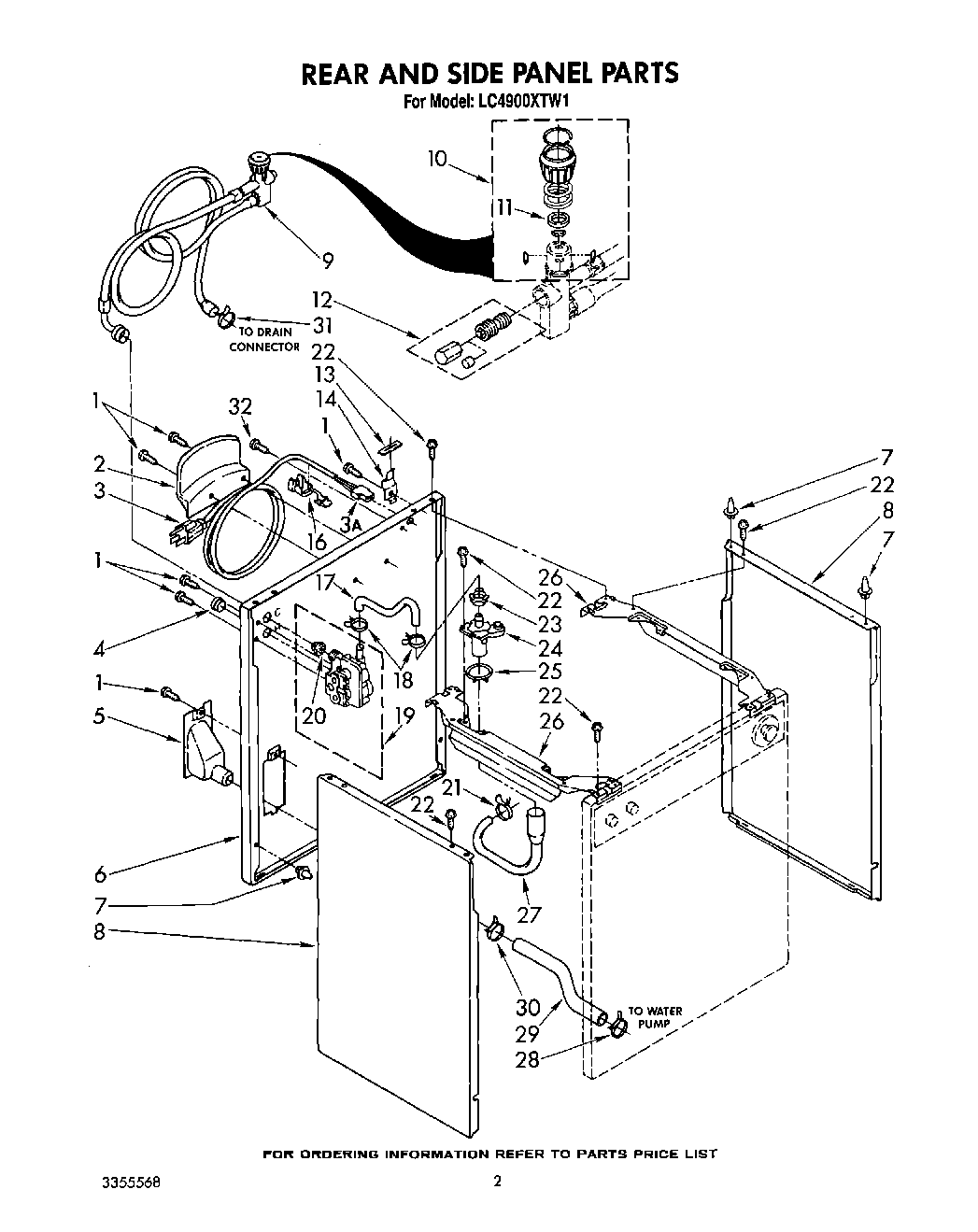

LC4900XTW1 02 – REAR AND SIDE PANEL, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3355568
	WPL LIT3347020
	Golden Harvest
	Golden Harvest (Uncut)
	WPL LIT3351410
	Guide, Use And Care
	WPL LIT3356179
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
1	WP3390631 Whirlpool Screw
2	Bracket, Hose Storage
3	Cord, Power (Includes Illus. 3A)
3	Receptacle, 3-Way Terminal (Use W/94614)
4	WP356054 Whirlpool Cap Assembly
5	WPW10358149 Whirlpool Hose
6	Panel, Rear (Almond Model)
6	Panel, Rear (White Model)
6	Panel, Rear (Golden Harvest)
7	Locator, Top
8	Panel, Side (2) (Golden Harvest)
8	Panel, Side (2) (White Model)
8	Panel, Side (2) (Almond Model)
9	WPW10187809 Whirlpool Dishwasher Filter and Drain Hose
10	WP285170 Whirlpool Collar
11	Seal
12	Valve, Pressure Relief
13	18849 Whirlpool Pad
14	Hinge (L.H.)
16	Strain Relief, Power Cord
17	Hose, Water Inlet
18	WP596669 Whirlpool Hose Clamp
19	285805 Whirlpool Washer Water Inlet Valve
20	WP96160 Whirlpool Washer Inlet Valve Screen
21	Clamp, Hose
22	60001022 Whirlpool Oven Screw
23	WP356471 Whirlpool Cap
24	WP356363 Whirlpool Siphon Break
25	WP616099 Whirlpool Clamp
26	Brace, Tie (2)
27	Hose, Siphon Break
29	Hose, Pump Drain
31	WP285655 Whirlpool Hose Clamp
32	SCREW
