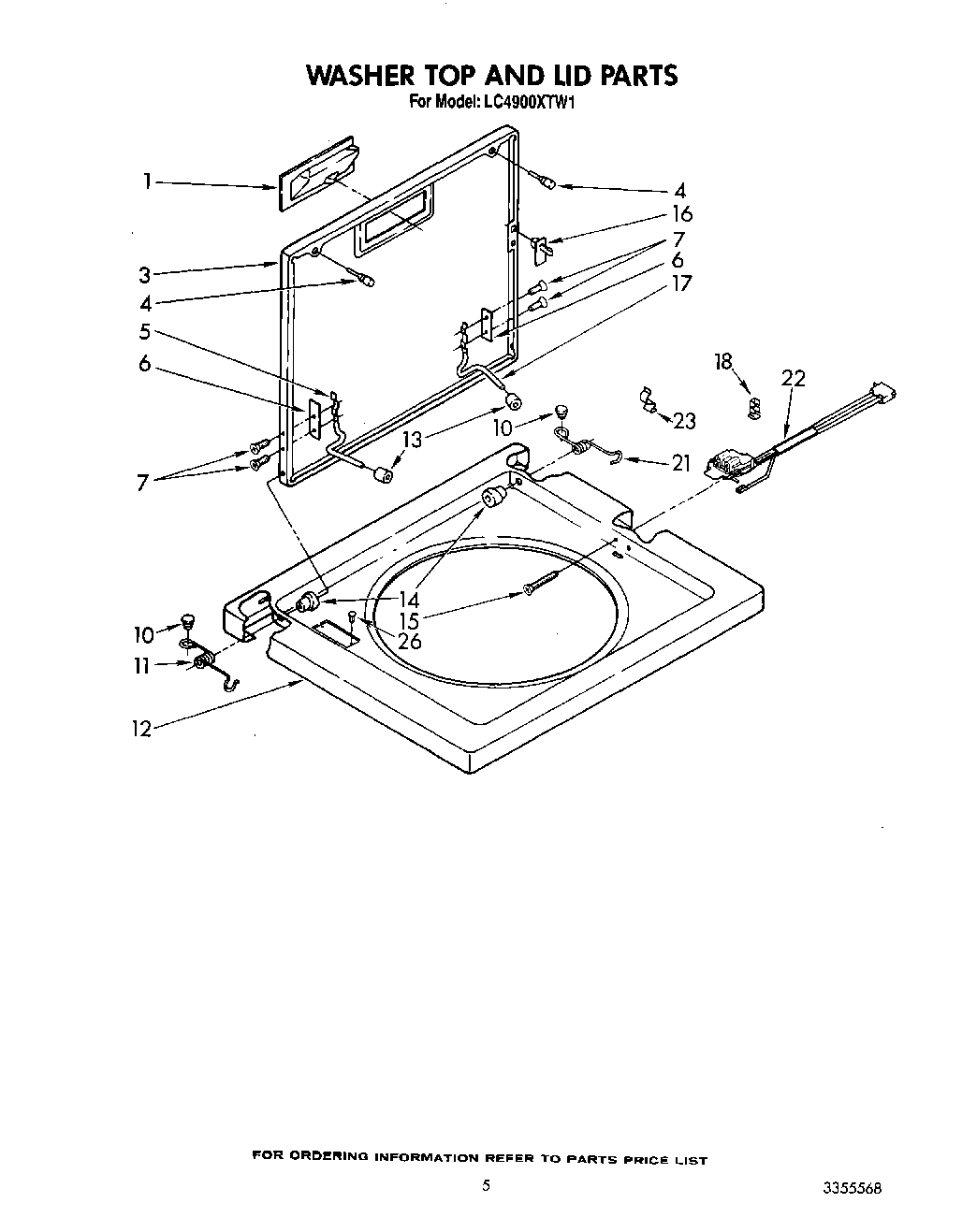

LC4900XTW1 04 – WASHER TOP AND LID

Products

Position	Product
1	Handle, Lid (Almond)
1	Handle, Lid (White)
1	Handle, Lid (Golden Harvest)
3	Lid (Almond Model)
3	Lid (White Model)
3	Lid (Golden Harvest)
4	80011 Whirlpool Washer Lid Bumper Kit of 2
5	384458 Whirlpool Hinge Assembly
6	WP21097 Whirlpool Pad
7	SCREW
10	Plug, Button
11	Lid Spring (Includes No. 10)
12	Top (Almond Model)
12	Top (Golden Harvest)
12	WP384693 Whirlpool Top
13	Bumper, Lid Hinge
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	WP3356311 Whirlpool Screw
16	WP358684 Whirlpool Strike Assembly
17	384459 Whirlpool Hinge
18	W10113937 Whirlpool Clamp
21	Spring, Lid (R.H.) (Includes Illus. 10)
22	WP3355805 Whirlpool Lid Switch
23	WP90016 Whirlpool Clip
26	Rivet, Serial Nameplate
