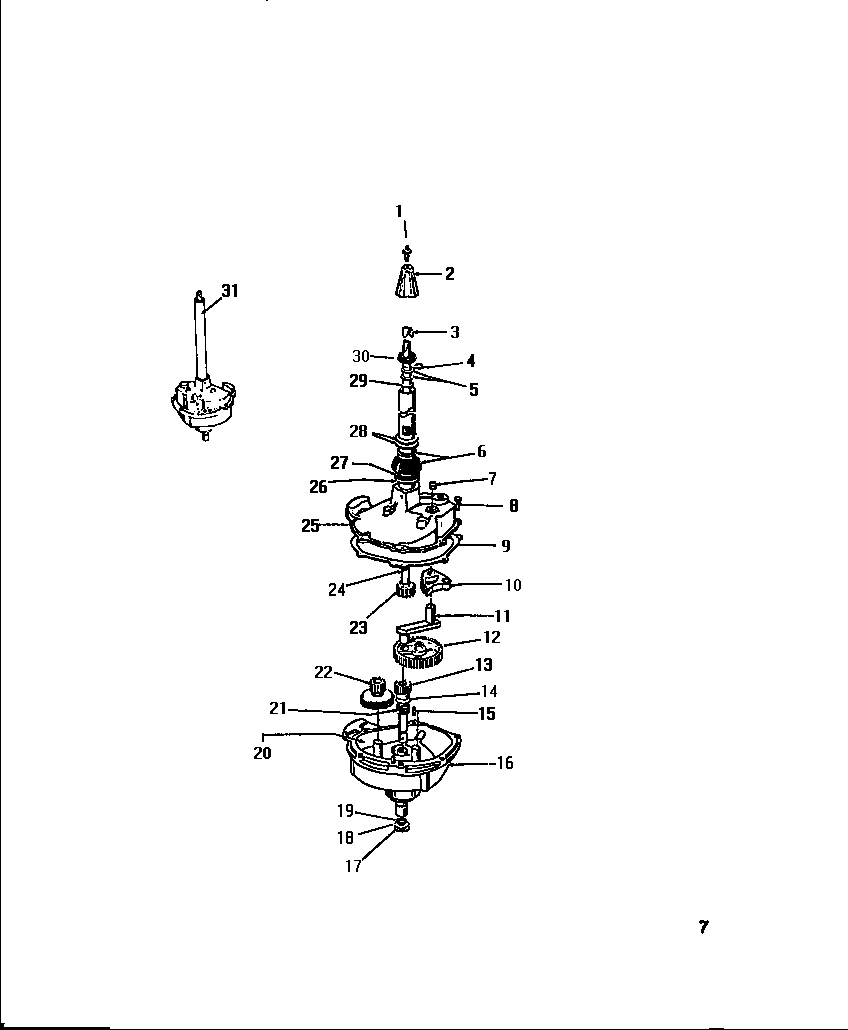

LC550EXD3 07 – TRANSMISSION

Products

Position	Product
1	WCI F063882000
2	WCI Q199037
3	SHIM (AS REQUIRED)
4	WCI F068158000
5	WCI F077060000
6	WCI F079420000
7	WCI F077061000
8	WCI F079688000
9	WCI F130895000
10	WCI F130405100
11	WCI F066078100
12	WCI F130404100
13	WCI Q199038
15	WCI F077058000
16	WCI F133040000
17	WCI F077098000
18	WASHER, THRUST
19	5303161173 Frigidaire Seal Assembly
20	OIL, TRANSMISSION, 1 QUART
21	WCI F077052000
22	WCI F130403100
23	WCI F077092000
24	WCI Q199044
25	WCI Q199045
26	WCI F077154000
27	WCI F077156000
28	WASHER, SPACER (AS REQUIRED)
29	WCI F062568000
30	5303161307 Frigidaire Dryer Seal Assembly
31	WCI Q199046
