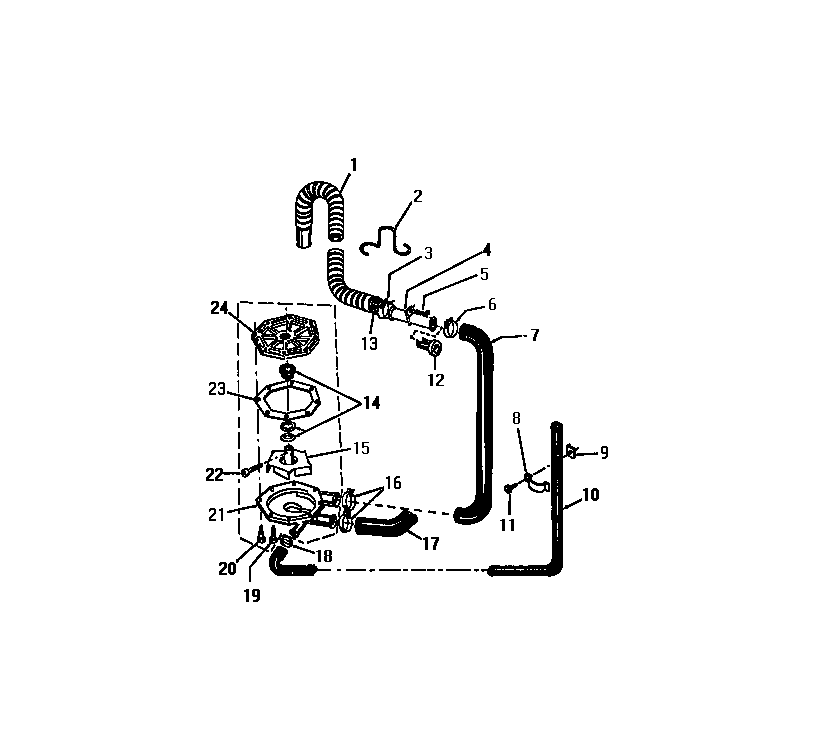

LC550EXW3 04 – PUMP & HOSES

Products

Position	Product
1	WCI F137465000
2	RETAINER-DRAIN HOSE
3	CLAMP-HOSE
4	WCI Q199028
5	WCI F131276000
6	WCI F064154011
7	WCI Q199027
8	WCI F130491100
9	WCI F078029000
10	WCI Q199025
11	WCI Q199026
12	WCI Q199029
13	WCI F132251000
14	SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKET.)
15	IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASKET, IMPELLE
16	WCI Q199024
17	HOSE
18	WCI Q199023
19	5304401796 Frigidaire Screws
20	SCREW-PUMP MTG. (4)
21	WCI F077351000
22	SCREW-IMPELLER
23	WCI F077354000
24	WCI F077352000
