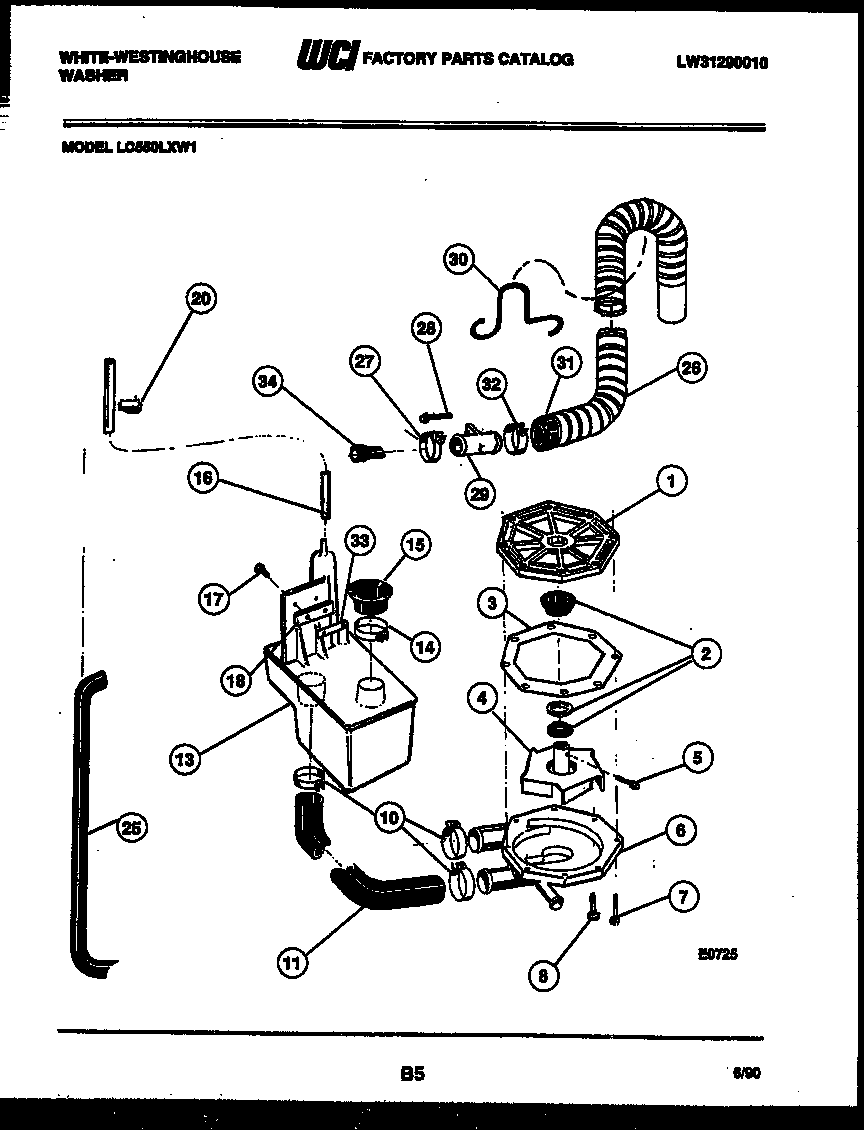

LC550LXD1 03 – DRAIN AND RECIRCULATE PARTS

Products

Position	Product
*30829	WCI F077678100
*30829	WCI F133058100
1	WCI F077352000
2	SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKET.)
3	WCI F077354000
4	IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASKET, IMPELLE
5	SCREW-IMPELLER
6	WCI F141874100
8	SCREW-PUMP MTG. (4)
10	WCI F140887027
11	HOSE
13	WCI F5303206795
14	CLAMP-HOSE
15	WCI F137466000
16	WCI F077199002
17	WCI F136471000
18	WCI F140324000
20	WCI 08008454
25	WCI Q000199027
26	WCI 3205936
26A	WCI F130495200
27	WCI F064154011
28	5304401796 Frigidaire Screws
29	WCI F141124000
30	RETAINER
31	WCI F132251000
32	WCI 5364154013
33	WCI F139592000
34	WCI F141123000
