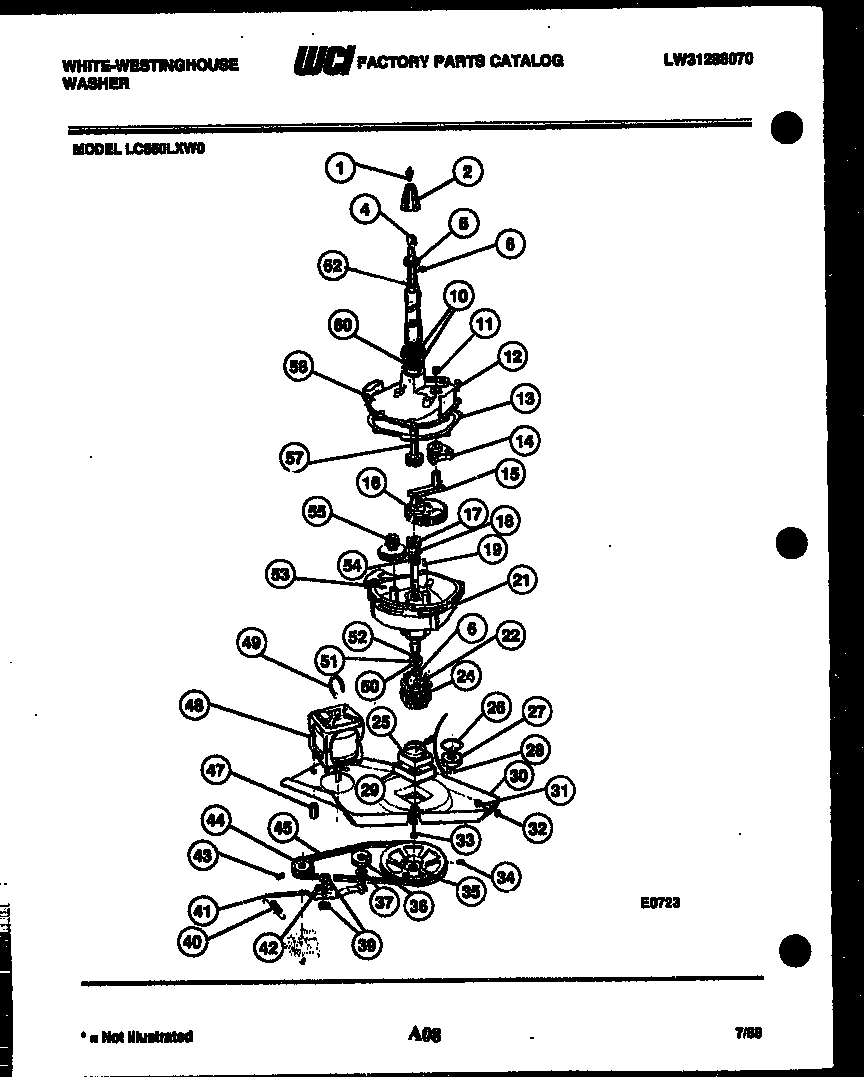

LC550LXW0 05 – TRANSMISSION PARTS

Products

Position	Product
*12707	WCI F140606100
1	WCI F063882000
2	WCI F140465000
4	SHIM (AS REQUIRED)
5	5303161307 Frigidaire Dryer Seal Assembly
6	WCI F068158000
10	WCI F079420000
11	WCI F077061000
12	WCI F079688000
13	WCI F130895000
14	WCI F130405100
15	WCI F066078100
16	WCI F130404100
17	WCI F141770000
19	WCI F077058000
21	HOUSING, LOWER
24	WCI F130417000
27	WCI F137014000
28	WCI F141261000
29	WCI F077009100
30	WCI F132770028
31	WCI F077090000
32	WCI F073804000
33A	WCI F078749000
33	WCI F142220000
34	5303270023 Frigidaire Screw Set
35	WCI F140999100
36	5303912533 Frigidaire Pulley
39	WCI F142027000
40	WCI F078465000
41	WCI F141786000
43	WCI F132861000
44	WCI F134881000
45	5303280326 Frigidaire Drive Belt Assembly
47	SPACER (3)
48A	WCI Q000199043
48	WCI F140322000
49	5304464772 Frigidaire Refrigerator Wire Tie
50	WCI F077098000
51	WASHER, THRUST
52	5303161173 Frigidaire Seal Assembly
53	OIL, TRANSMISSION, 1 QUART
54	WCI F077052000
55	WCI F130403100
57	134736400 Frigidaire Gear Case
58	WCI F140588000
60	WCI F077156000
62	WCI F062568000
