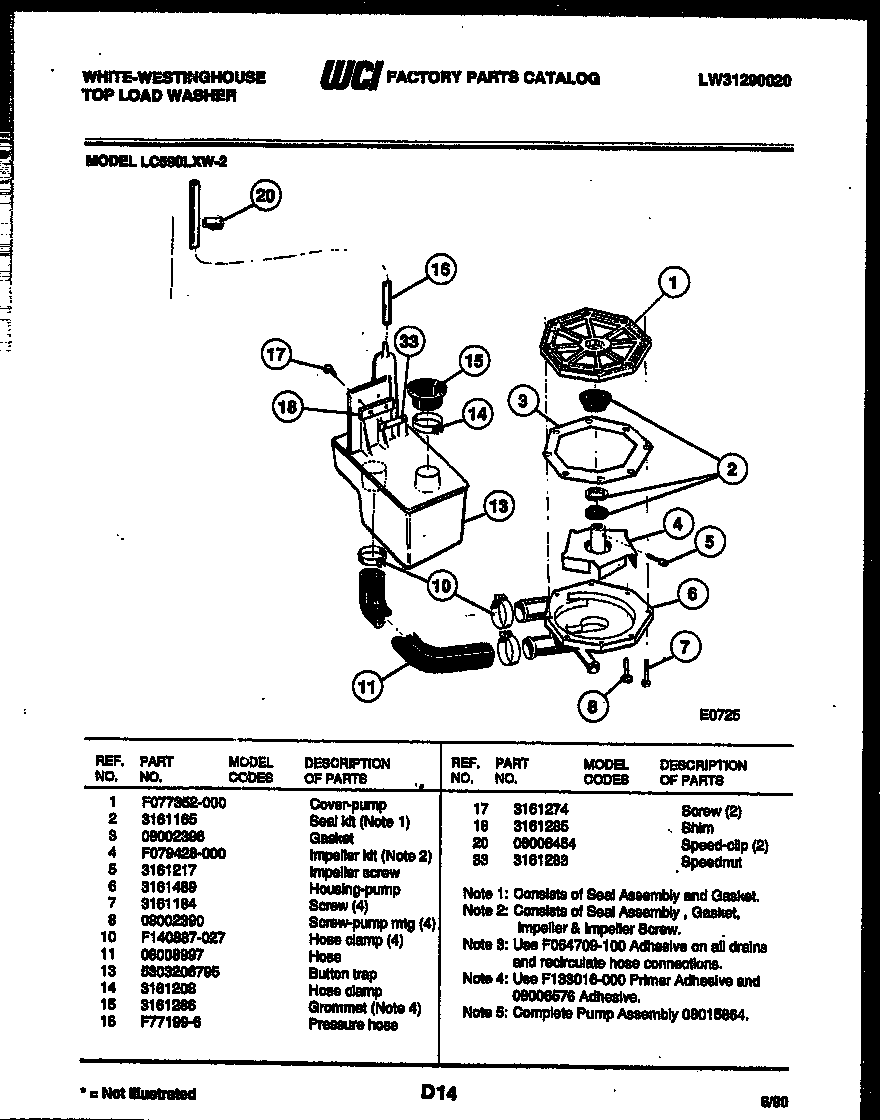

LC590LXD2 04 – DRAIN RECIRCULATE PARTS

Products

Position	Product
1	WCI F077352-000
2	SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKET)
3	WCI 08002396
4	WCI F079428-000
5	WCI 3161217
6	WCI 3161489
7	5304401796 Frigidaire Screws
8	WCI 08002390
10	WCI F140887-027
11	WCI 08008997
13	WCI 5303206795
14	WCI 3161208
15	WCI 3161286
16	5304401845 Frigidaire Tube Pressure
17	WCI 3161274
18	WCI 3161285
20	WCI 08008454
33	WCI 3161283
