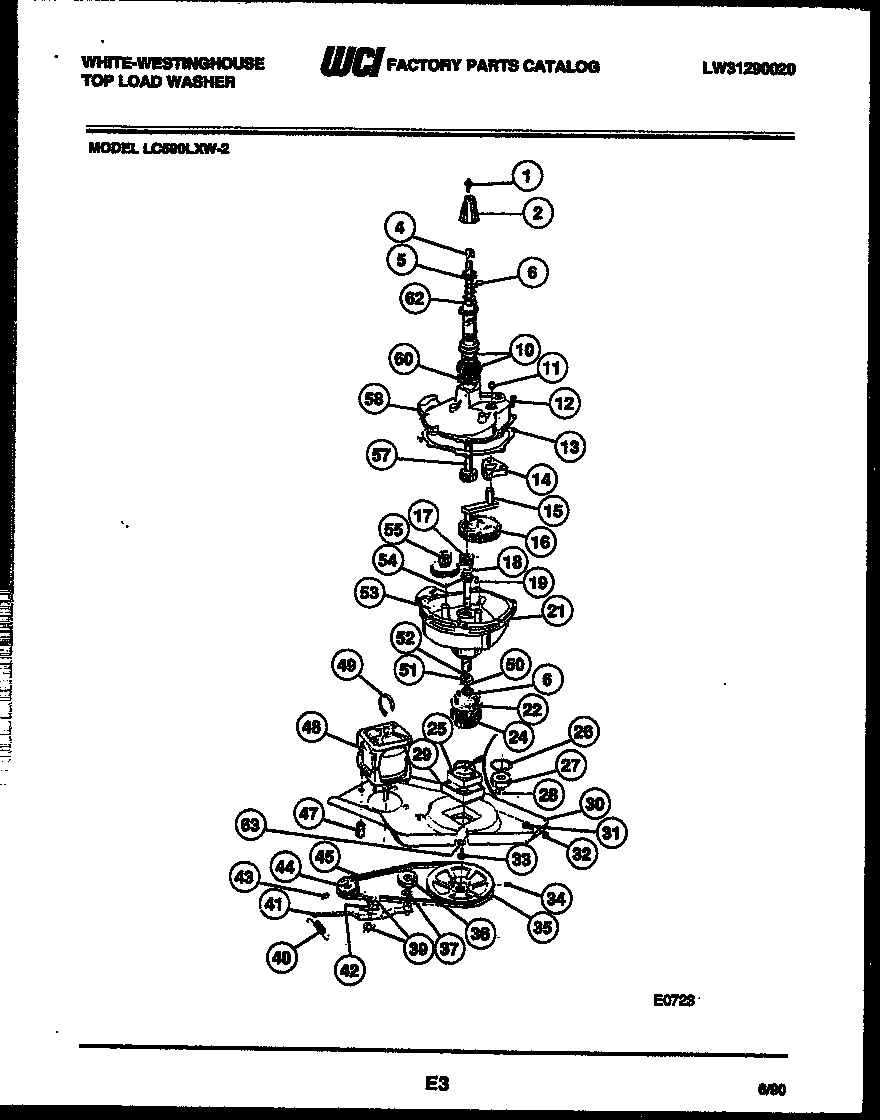

LC590LXD2 06 – TRANSMISSION PARTS

Products

Position	Product
*29393	WCI 5303208459
1	WCI 3161221
4	WCI 08014904
5	5303161307 Frigidaire Dryer Seal Assembly
6	WCI 3161223
10	WCI 08950197
11	PIPE PLUG
12	SCREW (6)
13	WCI 08015778
14	WCI 08011268
15	WCI 3161169
16	WCI 08015496
17	WCI 08014905
19	DOWEL PIN
21	WCI F140586-000
22	WCI 08027536
24	SLEEVE-CLUTCH COIL
27	WCI 08950058
28	WCI 08015536
29	WCI F077009-100
30	WCI 08002472
31	WCI 3161211
32	WCI 3161212
33	WCI 08027582
33A	WCI 08002467
34	5303270023 Frigidaire Screw Set
35	WCI 3937008
36	5304527822 Frigidaire Pulley
39	WCI 08027535
40	WCI F078914-000
41	WCI 3937001
43	WCI F132861-000
44	WCI 08006686
45	5303280326 Frigidaire Drive Belt Assembly
47	WCI 3161303
48	WCI 08015502
48A	WCI 08014888
49	5304464772 Frigidaire Refrigerator Wire Tie
50	WCI 3351064
51	THRUST WASHER
52	5303161173 Frigidaire Seal Assembly
53	WCI 5303208460
54	LGS SPRING-SMALL
55	WCI 3161175
57	134736400 Frigidaire Gear Case
58	WCI F140588-000
60	WCI 3161231
62	THRUST WASHER
63	RUBBER SPACER (2)
