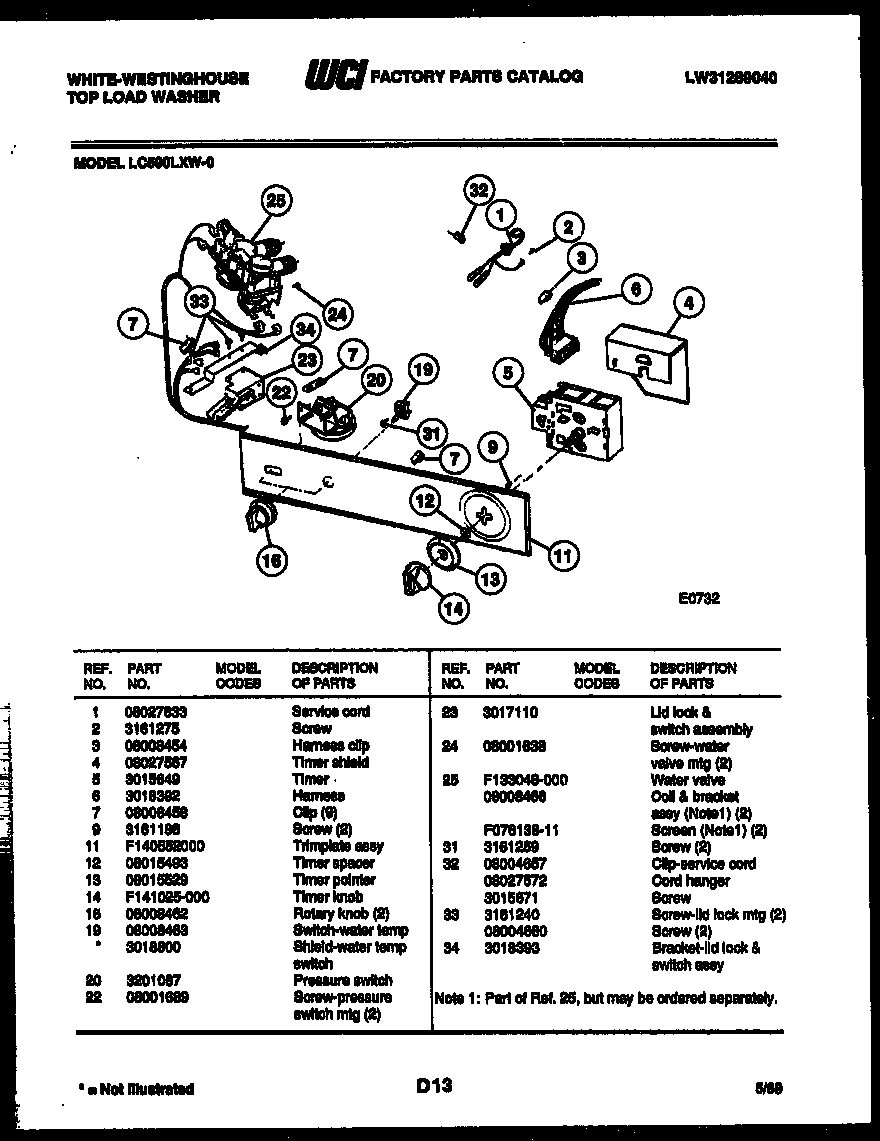

LC590LXW0 03 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 08027633
2	134154100 Frigidaire Screw 10-32 x 0.375 Co
3	WCI 08008454
4	WCI 08027567
5	WCI 3015649
6	WCI 3018392
7	WCI 08008458
9	SCREW (2)
11	WCI F140552000
12	WCI 08015493
13	WCI 08015529
14	WCI F141025-000
16	WCI 08008462
19A	WCI 3018800
19	WCI 08008463
20	WCI 3201087
22	131243800 Frigidaire Screw
23	WCI 3017110
24	WCI 08001638
25B	WCI F076138-11
25	WCI F133048-000
25A	WCI 08008466
31	WCI 3161259
32B	5303015671 Frigidaire Bracket Termination Screw
32	WCI 08004657
32A	WCI 08027572
33	SCREW (2)
33A	SCREW (3)
34	BRACKET-LID LOCK & SW ASSEMBLY
