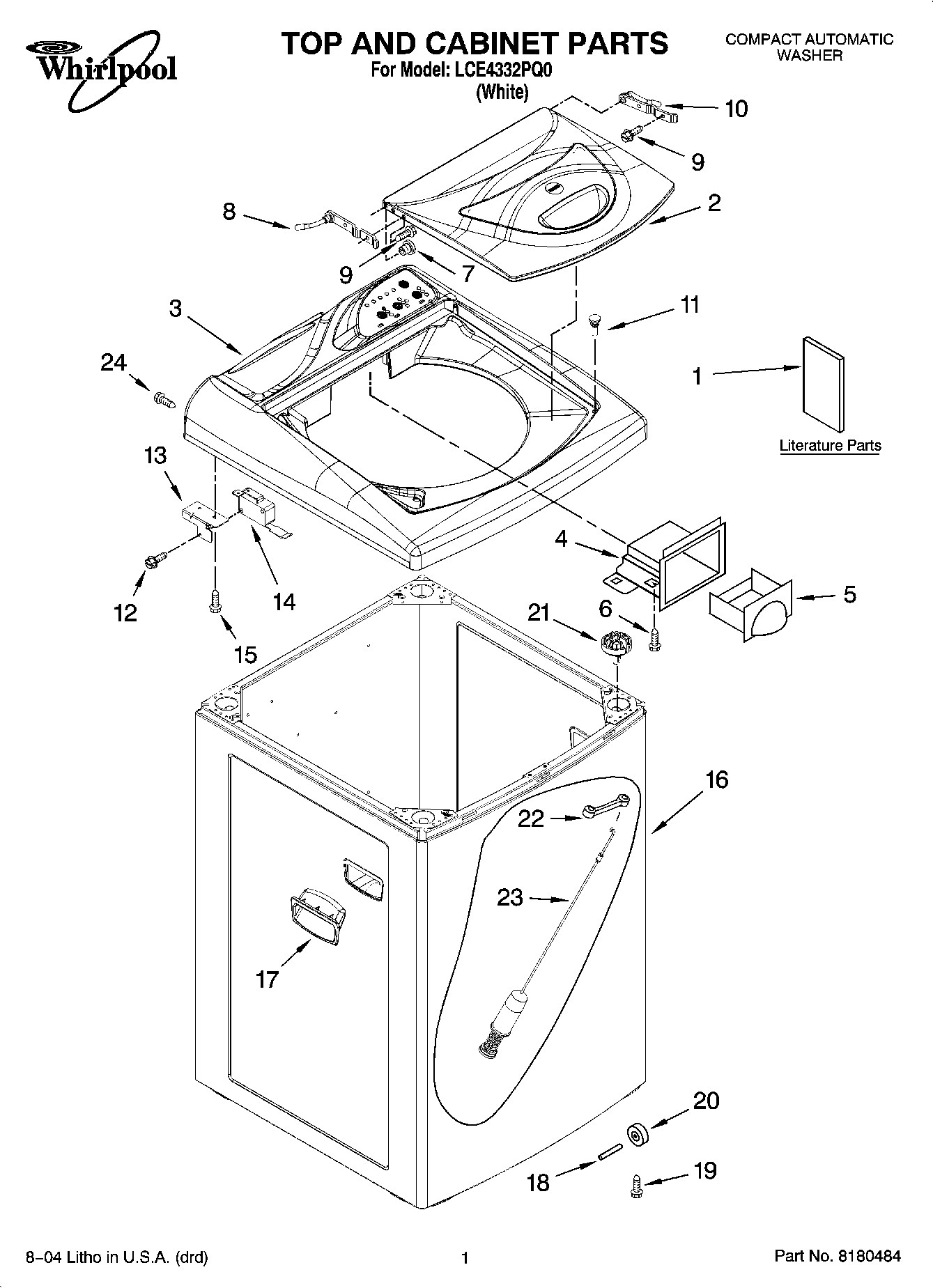

LCE4332PQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Wiring Diagram & Tech Sheet Assy
1	Use & Care Guide
2	WP326040947 Whirlpool Lid Assembly
3	Top
4	Housing, Dispenser
5	Drawer, Dispenser
7	Bearing, Hinge
8	Hinge, Lid (LH)
9	Screw, Lid Hinge (4)
10	Hinge, Lid (RH)
11	BUMPER
12	489392 Whirlpool Refrigerator Screw
13	Bracket, Lid Switch
14	Switch, Lid
15	Screw (2)
16	Cabinet (Includes 17)
17	Handle, Cabinet
18	Shaft, Wheel (4)
19	Screw (4)
20	Wheel (4)
21	W10764578 Whirlpool Suspension
22	Strap, Snubber
24	WP3400094 Whirlpool Screw
