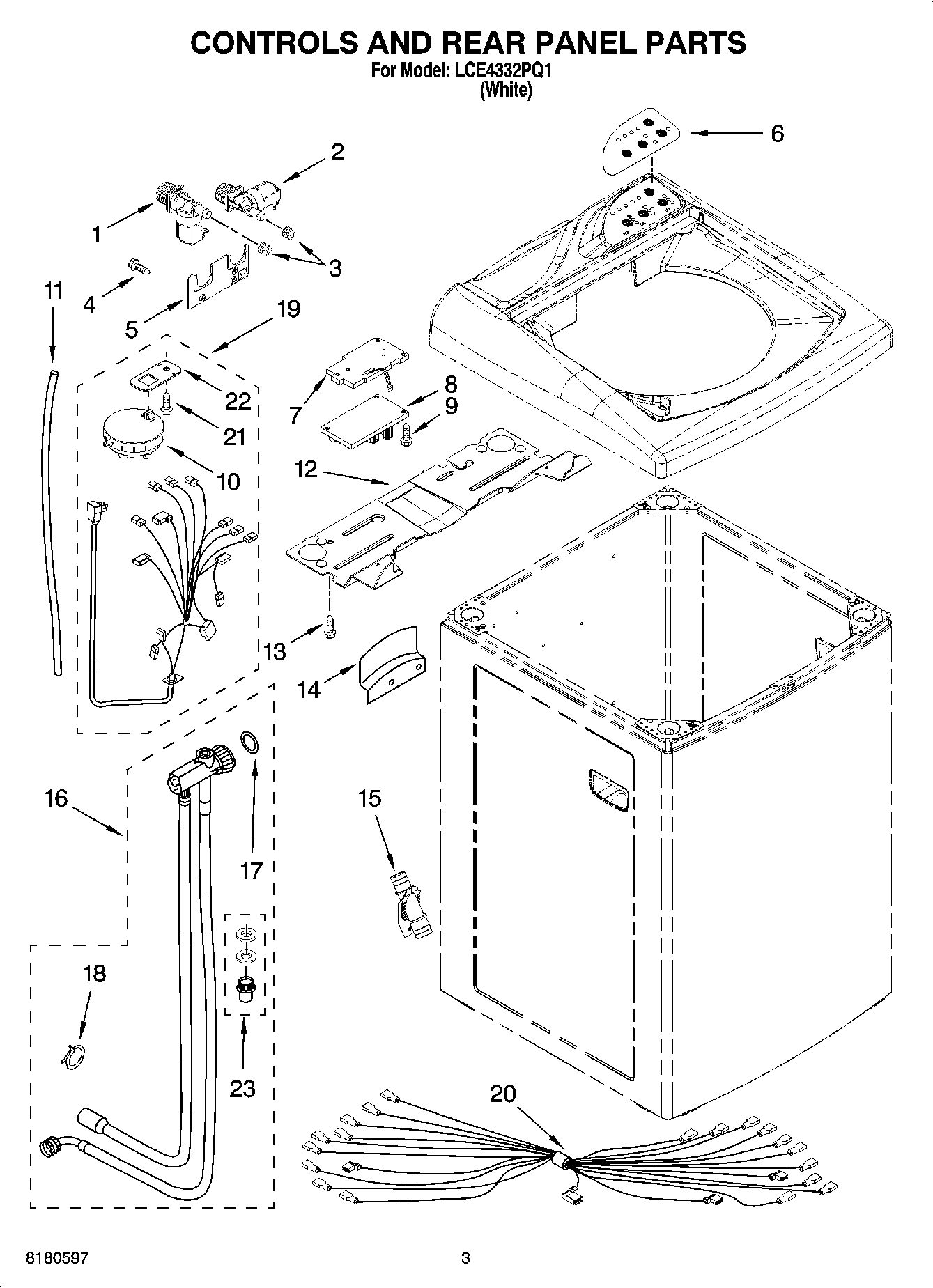

LCE4332PQ1 02 – CONTROLS AND REAR PANEL PARTS

LCE4332PQ1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

LCE4332PQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1Inlet Valve (Hot)
2Inlet Valve (Cold)
3Seal, Inlet Valve (2)
4Screw (2)
5Bracket, Inlet Valve
6Overlay
7Interface Board
8Control, Electronic
10Switch, Water Level
11W10779052 Whirlpool Hose Assembly
12Shield, Controls
13WP3400094 Whirlpool Screw
14Bracket, Hose Storage
15Connector, Drain Hose
16W10849778 Whirlpool Hose Assembly
17WP16123 Whirlpool Washer
18WP285655 Whirlpool Hose Clamp
19326048253 Whirlpool Power Cord
20326051030 Whirlpool Wire Harness
21Screw (2)
22Bracket, Pressure Switch Mounting
23WPW10254672 Whirlpool Faucet Adapter
