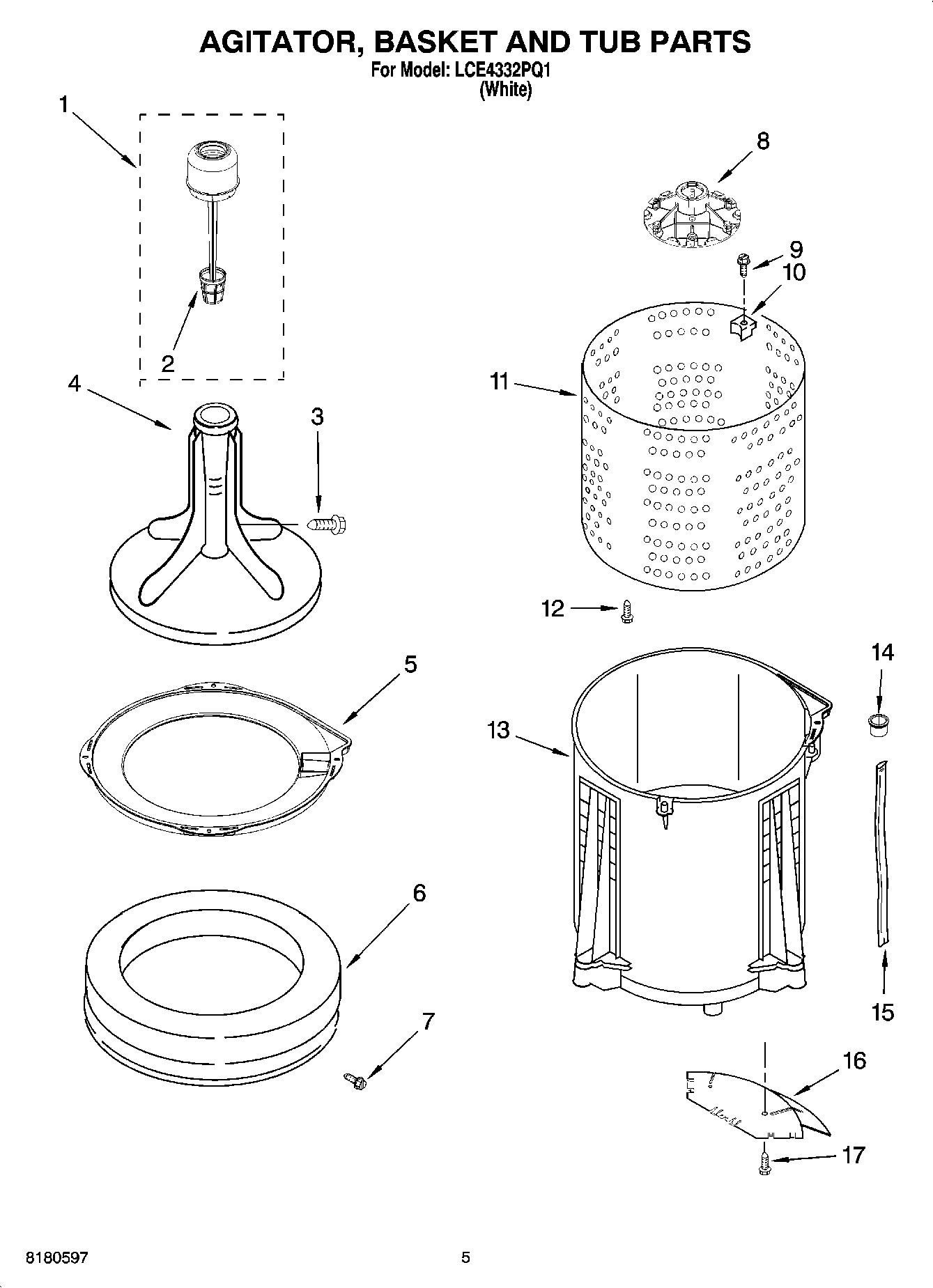

LCE4332PQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

Products

Position	Product
1	WP326018423 Whirlpool Dispenser Assembly
2	Filter, Lint
3	Screw, Agitator
4	WP8182227 Whirlpool Agitator
5	Tub Ring
6	Balance Ring
7	WP489491 Whirlpool Refrigerator Screw
8	Hub, Drive
9	SCREW
10	Saddle Block
11	BASKET
12	Screw (6)
13	Tub
14	Sleeve, Tub Overflow
15	Bag, Tub Overflow
16	Shield, Tub/Motor
17	Screw, Brake Actuator (2)
