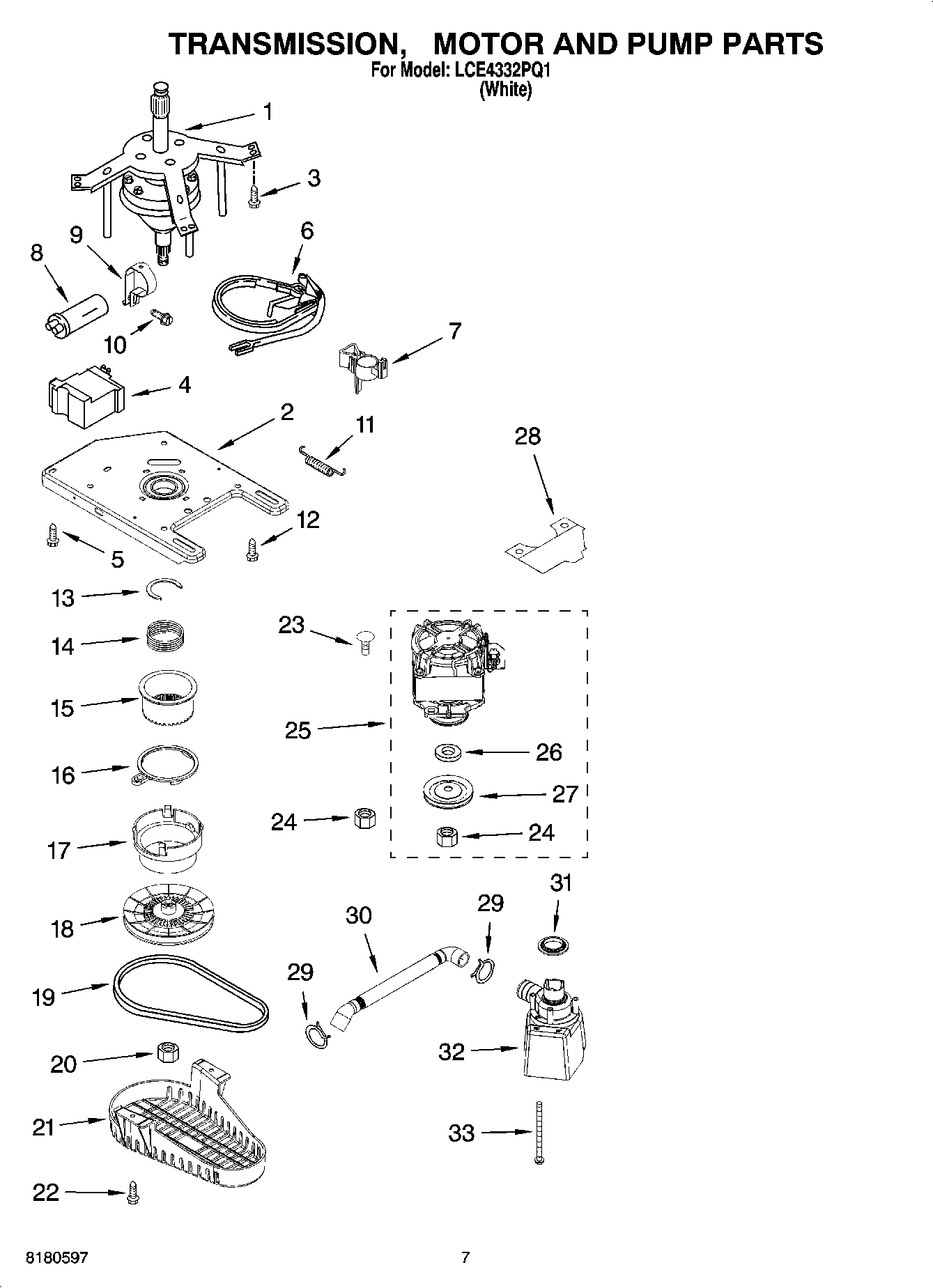

LCE4332PQ1 04 – TRANSMISSION, MOTOR AND PUMP PARTS

Products

Position	Product
1	Gearcase & Tub Support Asm
2	Motor Plate & Bearing Assembly
3	Screw, Tub Support (5)
4	Brake Actuator
5	Screw, Brake Actuator (2)
6	280121 Whirlpool Brake Board
7	Support, Brake Band
8	W10793290 Whirlpool Capacitor
9	Clamp, Capacitor
12	Screw, Gearcase to Motor Plate (4)
13	Clip
14	8182269 Whirlpool Spring
15	Slider, Splutch
16	Cam Ring, Splutch
17	Cam, Splutch
18	Pulley, Splutch
19	Drive Belt
20	NUT
21	Shield, Pulley
22	Screw (4)
23	Bolt, Motor Mounting (2)
24	90984 Whirlpool Nut
25	Motor, Main Drive
26	WASHER
27	Pulley, Motor
28	Shield, Motor
29	WP285655 Whirlpool Hose Clamp
30	Hose, Pump to Tub
31	Seal, Pump to Tub
32	Pump (Complete)
33	Screw, Pump (3)
