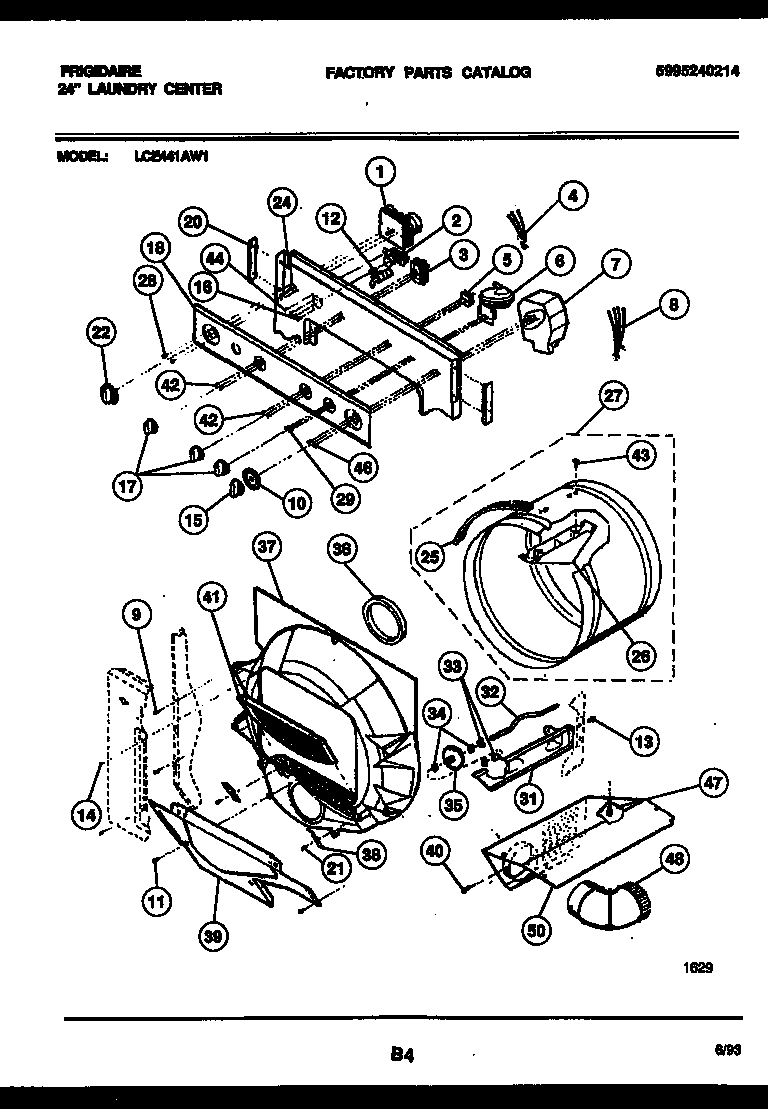

LCE441AL1 03 – CONSOLE, CONTROL AND DRUM

Products

PositionProduct
*76930Spacer,washer ,timer shaft
*76930WCI 5303208455
*76930WCI 08008454
*769305303303590 Frigidaire Dryer 4.0" Cable Tie
1WCI 3205057
2WCI 5303209765
3WCI 3205058
4WCI 5303289597
5WCI 5308008463
6WCI 131065400
7WCI 5303289594
8WCI 131027000
10WCI 3204999
11131205100 Frigidaire Screw
12WCI 3205000
13WCI 08011280
14SCREW (8)
15WCI 3205947
17WCI 3205948
18WCI 131168400
20WCI 3205006
22KNOB & DIAL ASSY
24WCI 3205008
25WCI 5303286418
26BAFFLE-DRUM (3)
27WCI 3205010
31WCI 3017902
31WCI 3017901
32WCI 5308004076
33SNAP RING (4)
34WCI 08012152
35WCI 5308004077
36WCI 5303209445
37WCI 5303288388
38GUIDE (2)
39COVER-LINT HSG
40SCREW (2)
41WCI 3205015
42WCI 3161259
44WCI 08010804
46WCI 08001544
47WCI 3205016
48WCI 3205017
50WCI 3016460
