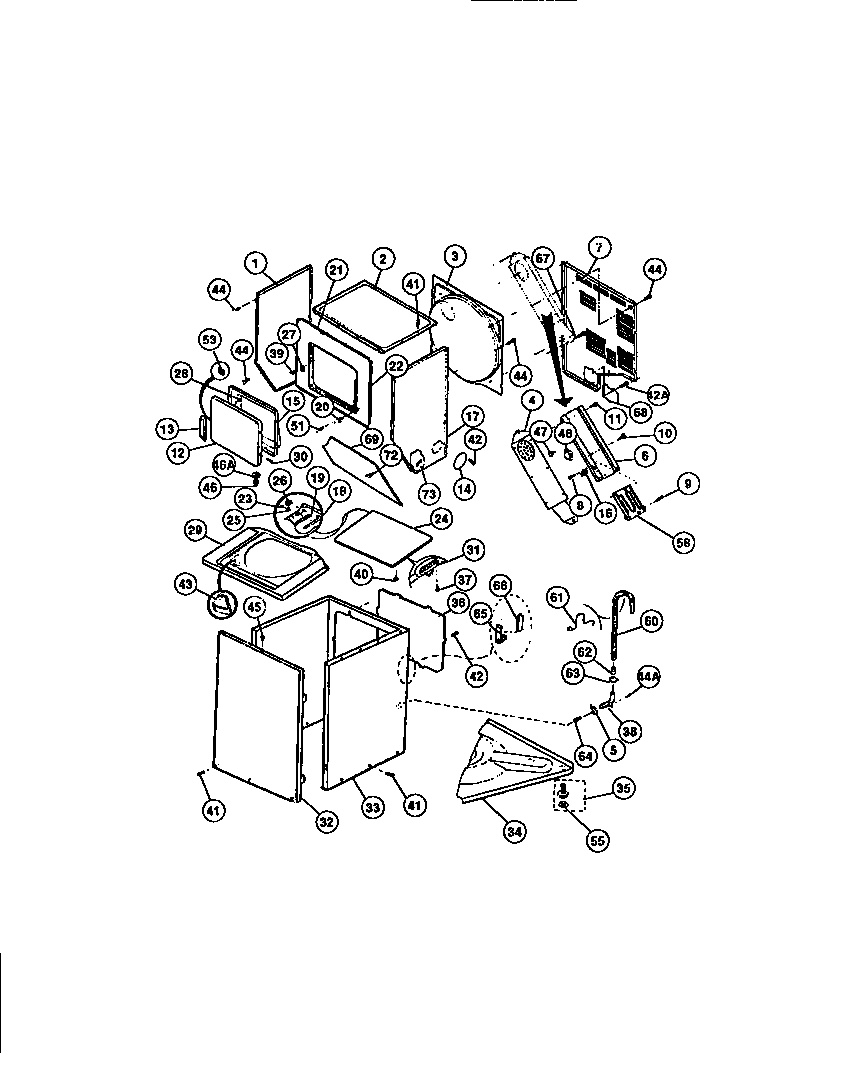

LCE441LL2 02 – CABINET AND HEATER

Products

Position	Product
*72763	WCI 3161057
*72762	WCI 5303206879
*72761	WCI 3004951
*72760	RESISTOR
1	PANEL – SIDE LH – ALMD
2	WCI 3204949
3	WCI 3017111
4	PANEL-FRONT
5	WCI 08004057
6	WCI 3205055
7	PANEL-VENT
9	SCREW (2)
11	WCI F141477-000
12	WCI 3016429
13	WCI 3016432
14	WCI 3204953
15	WCI 3016435
16	WCI 08015853
17	WCI 5303209764
18	HINGE BAR-LH
18A	WCI 3205943
19	WCI 3204957
20	HINGE-DOOR
21	PANEL-FRONT (ALMOND)
22	WCI 3204964
23	WCI 3204359
24	LID (ALMOND)
25	WCI 08002408
26	5303208743 Frigidaire Grommet
27	WCI 3016439
28	131205100 Frigidaire Screw
29	PANEL-TOP (ALMOND)
30	WCI 3161187
31	131390000 Frigidaire Door Catch-Strike
32	PANEL-FRONT (ALMOND)
33	CABINET (ALMD)
34	WCI 3161044
35	WCI 3937004
36	PANEL-REAR ACCESS
37	3204368 Frigidaire Screw-Strike
38	COUPLER – DRAIN HOSE
39	WCI 3161237
40	WCI 3204981
41	SCREW
42	131302800 Frigidaire Drum Vane Screw
43	WCI 3204983
44	WCI 08011280
44A	WCI F144005-000
45	PIN – LOCATING
46	WCI 3016440
46A	WCI 5303208633
47	WCI 3204269
48	WCI 5303208647
51	WCI 08006549
53	PLATE-STRIKE
55	WCI 3004083
57	WCI 3161185
58	WCI 08015795
60	WCI 3205936
61	WCI 3204987
62	WCI 5303206866
63	WCI F064154-013
63A	WCI 3161250
64	WCI 08014555
65	BRACKET-CAPACITOR
66	WCI 08014903
67	131168200 Frigidaire Dryer Screw
68	WCI 08015822
69	PANEL-ACCESS (ALMOND)
72	WCI 08011318
73	SCREW (2)
