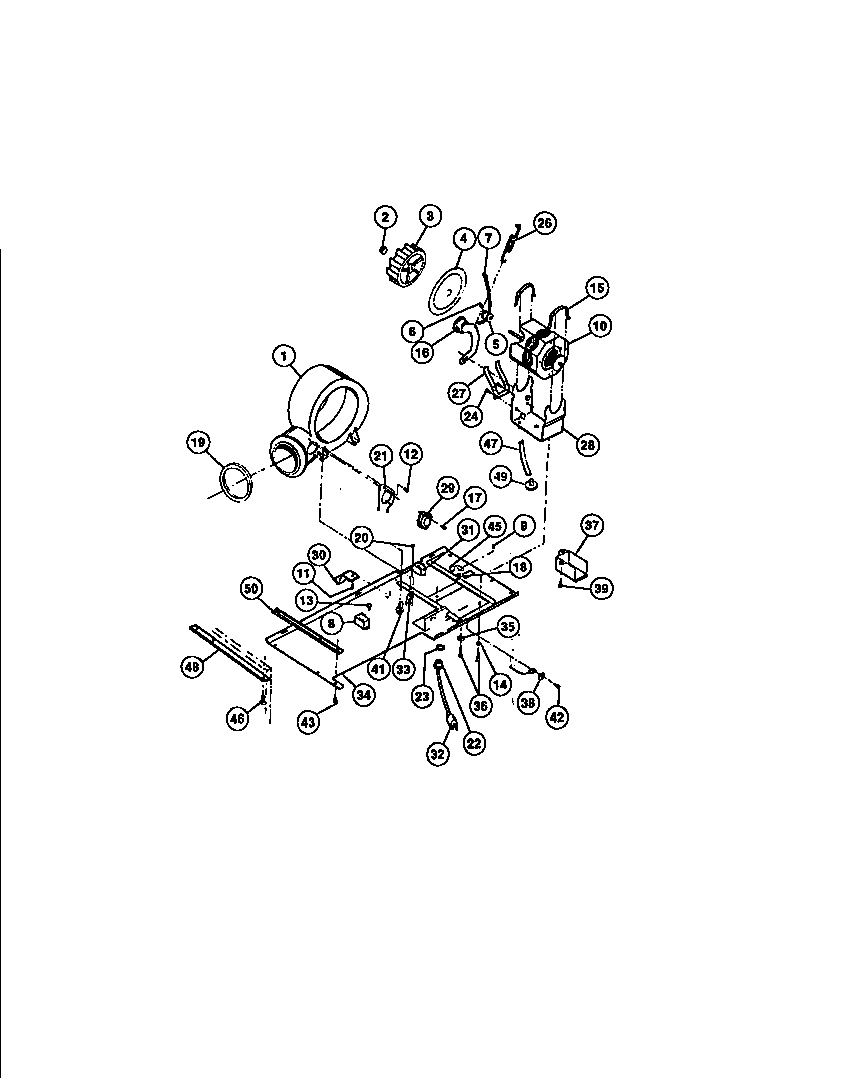

LCE441LW2 04 – DRYER MOTOR, BASE, HOUSING AND MOUN

Products

Position	Product
*72766	WCI F133077-000
1	WCI 5303209767
2	CLAMP, HOSE
3	WCI 5303209769
4	PLATE – HOUSING
5	WCI 08015796
6	WCI 08027520
7	WCI 3161099
8	WCI 3205062
9	SCREW (2)
10	WCI 5303209771
13	WCI F136317-000
14	WCI 08001557
15	WCI 3161190
16	IDLER ARM & WHEEL ASSEMBLY
17	131168200 Frigidaire Dryer Screw
18	WCI F079171-000
19	WCI 3205021
20	WCI 08011280
21	WCI 3016464
22	5303209428 Frigidaire Serv.Cord Bushing
23	WCI 3205063
26	SPRING-IDLER ARM
27	WCI 08015824
28	CRADLE MOTOR
29	WCI 08004644
30	WCI 3205023
31	WCI 08004087
32	WCI 08004650
33	131205100 Frigidaire Screw
34	BASE-DRYER
35	WCI 08002468
37	WCI 3205025
38	WCI 08001572
39	WCI 3205020
40	WCI 3161274
41	SCREW (4)
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
45	WCI 08006557
46	WCI 08027582
47	5304401845 Frigidaire Tube Pressure
48	BRACE
49	WCI 08006559
50	WCI 3016469
