LCE441LW2 07 – WASHER TRANSMISSION

LCE441LW2 07 – WASHER TRANSMISSION

Written by

in

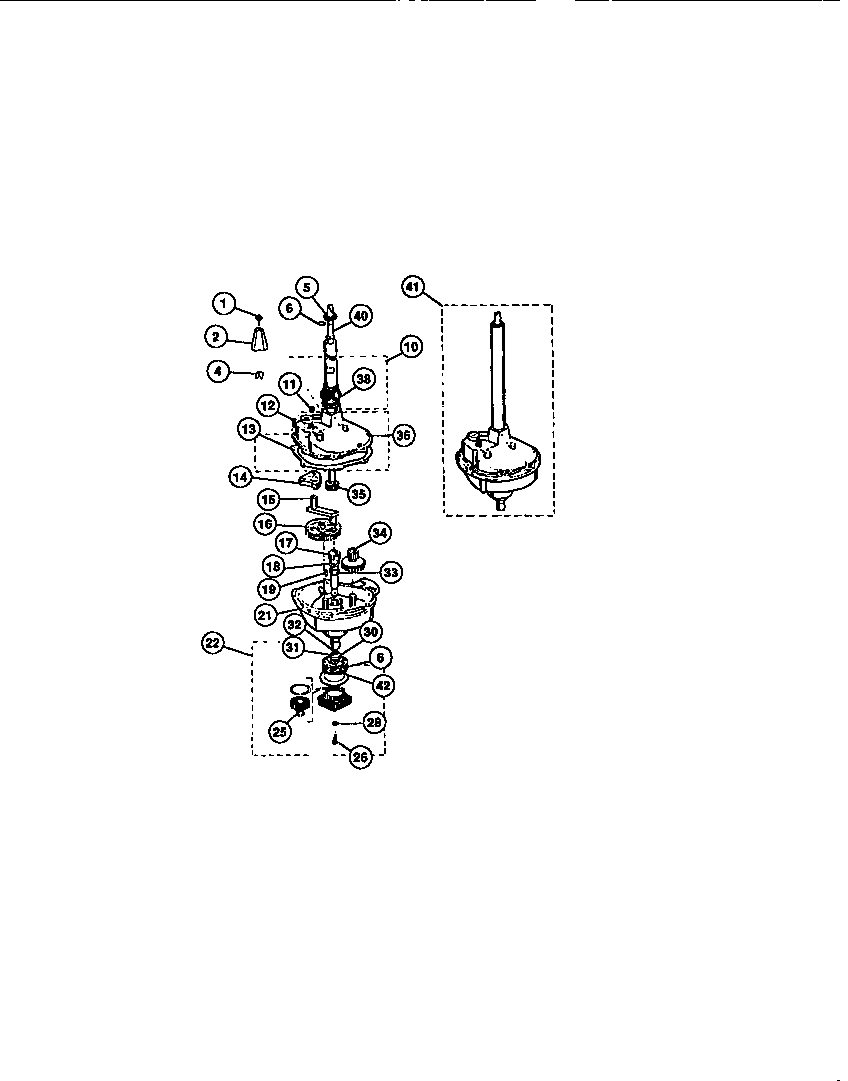

LCE441LW2 07 – WASHER TRANSMISSION

Products

Position	Product
*72771	WCI 5303208460
*72772	SLEEVE-CLUTCH COIL
1	WCI 3161221
2	WCI 08014904
4	WCI 3161222
5	WCI 08011273
6	WCI 3161223
10	WCI 08950197
11	PIPE PLUG
12	SCREW (6)
13	WCI 08015778
14	WCI 08011268
15	WCI 3161169
16	WCI 08015496
17	WCI 08014905
19	DOWEL PIN
21	WCI F140586-000
22	WCI 08950058
25	WCI 08015536
26	WCI 08027582
28	RUBBER SPACER (2)
30	WCI 3351064
31	THRUST WASHER
32	5303161173 Frigidaire Seal Assembly
33	LGS SPRING-SMALL
34	WCI 3161175
35	134736400 Frigidaire Gear Case
36	WCI F140588-000
38	WCI 3161231
40	THRUST WASHER
41	WCI 5303208459
42	WCI 08057430
