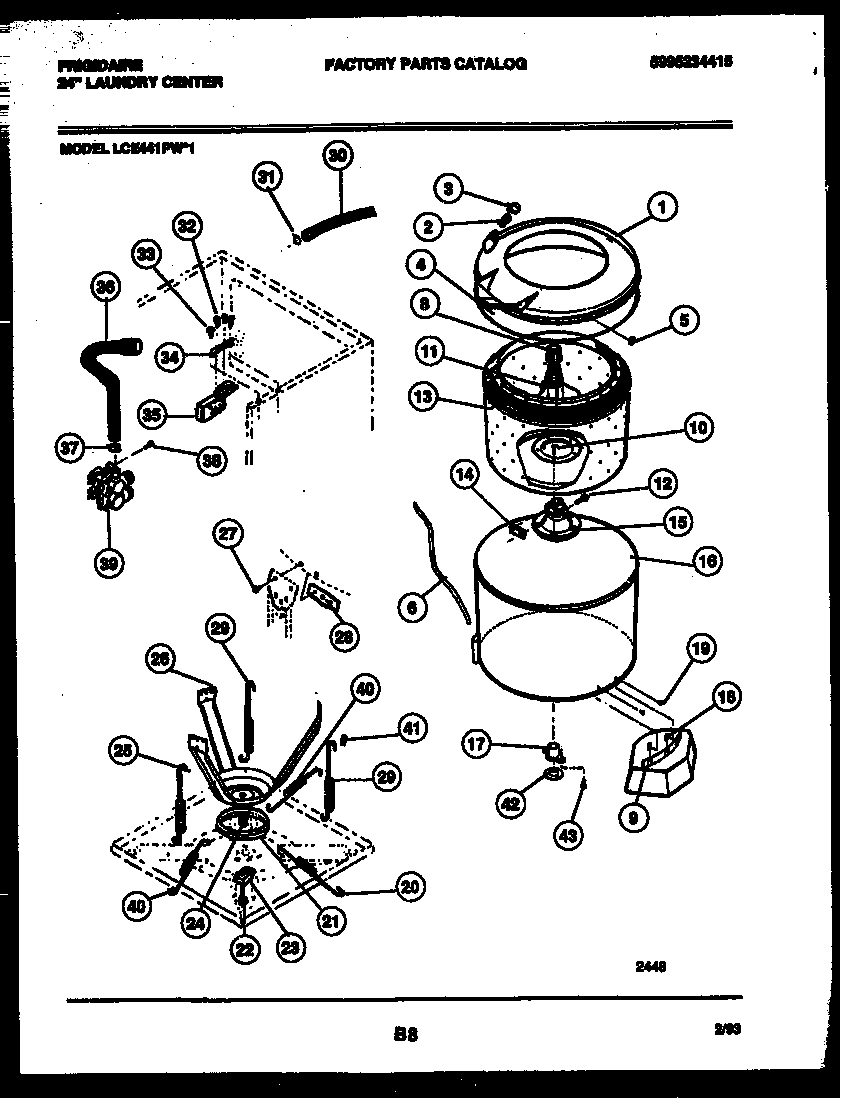

LCE441PW1 05 – TUBS, WATER VALVE AND LID SWITCH

LCE441PW1 05 – TUBS, WATER VALVE AND LID SWITCH

Written by

in

LCE441PW1 05 – TUBS, WATER VALVE AND LID SWITCH

Products

PositionProduct
*71729WCI 5373565000
1WCI 3205029
2WCI 5308027515
3WCI F140887026
4WCI 5303161121
5WCI 5303161199
65304401845 Frigidaire Tube Pressure
8WCI 5303161122
9WCI 5373283049
10137546400 Frigidaire Screw 5/165-18 X .625
11WCI 5303283050
12137539500 Frigidaire Washer Trunnion Lock Plate Bolt
13TUB-SPIN
14137107000 Frigidaire Plate
15131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
16WCI 131033000
173204405 Frigidaire Outer Tub Spin Bearing
18WCI 5303283052
19131420300 Frigidaire Screw
20WCI 5303212125
21SNUBBER RING
22WCI 5303161284
23WCI 5303161202
24NUT-EXPANSION
25WCI 5303161131
26WCI 5303283054
27SCREW (6)
28WCI 5303269887
29WCI 5303161133
305303912532 Frigidaire Hose Inlet 60"
315303161296 Frigidaire Washer-Inlet Hose (1Piece)
32SCREW
33131168200 Frigidaire Dryer Screw
34BRACKET
35WCI 3205033
36WCI 3205034
37154611101 Frigidaire Dishwasher Clamp
38WCI 5303010202
39134190200 Frigidaire Washer Water Valve
40WCI 5308006573
41CLIP (2)
425308002401 Frigidaire Washer Primary
433205150 Frigidaire Tub Bearing Screw
