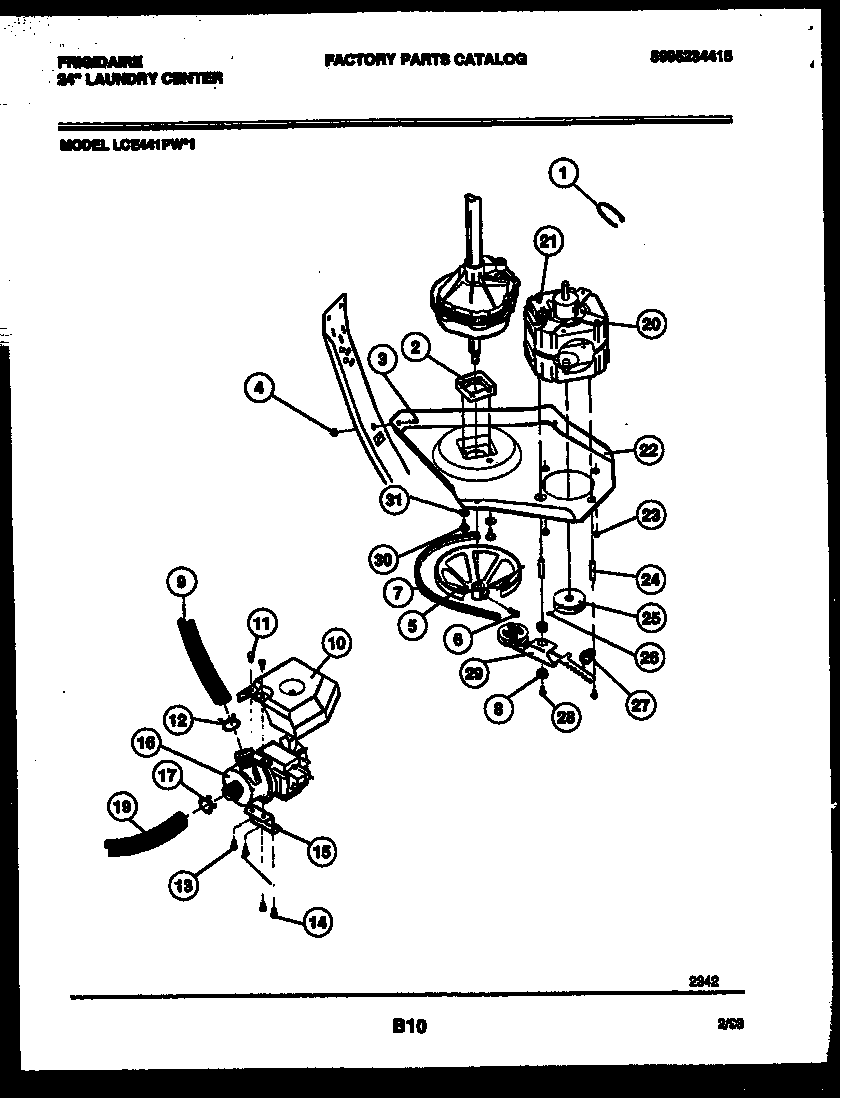

LCE441PW1 06 – MOTOR AND IDLER ARM CLUTCH

LCE441PW1 06 – MOTOR AND IDLER ARM CLUTCH

Written by

in

LCE441PW1 06 – MOTOR AND IDLER ARM CLUTCH

Products

PositionProduct
*717315304527822 Frigidaire Pulley
*71731SPRING WASHER
*71731CLAMP
15303161300 Frigidaire Strap
2WCI 5377009100
3WCI 3161211
4WCI 3161212
5WCI 131026500
65303270023 Frigidaire Screw Set
75303280326 Frigidaire Drive Belt Assembly
8WCI 08027535
9WCI 5303283055
10WCI 5303283071
12WCI 5303283076
135303283072 Frigidaire Shield Screw
14WCI 3205020
15WCI 5303284141
16WCI 5303292169
17WCI 5303283073
19WCI 5303283078
20WCI 5308015502
21SWITCH-MOTOR
22WCI 08002472
23HEX NUT
24WCI 5303161303
25WCI 131031900
26WCI 5303206869
27WCI 5308002456
28WCI 5303283080
29WCI 5303937001
30SCREW (2)
31RUBBER SPACER (2)
