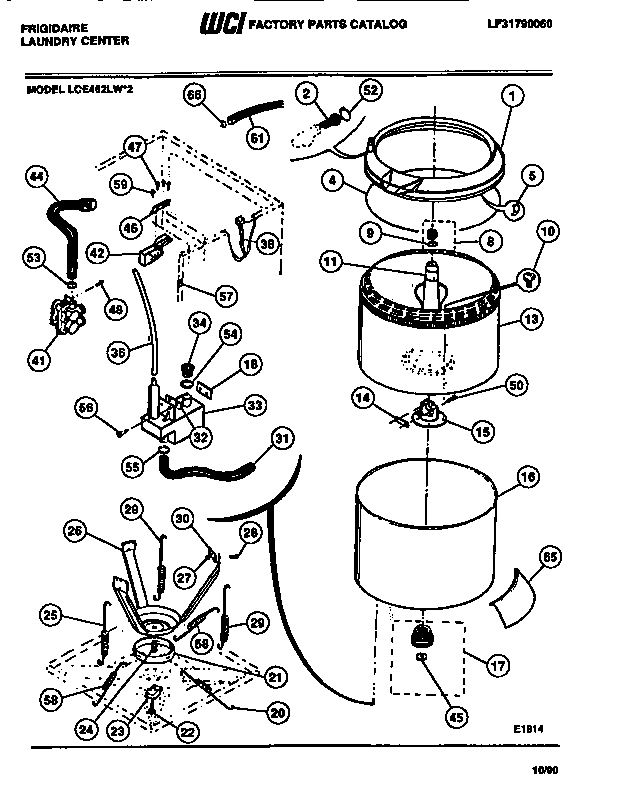

LCE462LW2 05 – WASHER-TUBS, HOSES

Products

Position	Product
*87609	CLIP-PRESSURE TUBE (LONG)
*87606	WCI 08006576
*87607	5303283849 Frigidaire Adhesive Clear
*87608	WCI 08014892
1	WCI 3205029
2	WCI 08027515
4	SEAL-TUB COVER
5	WCI 3161199
8	CAP-AGITATOR (INCL 9)
9	WCI FO73565-000
10	WCI 08027519
11	WCI 3161485
13	WCI 3161486
14	137107000 Frigidaire Plate
15	WCI 08014908
16	WCI 3161127
17	WCI 08027536
18	WCI 3161283
20	WCI 08006564
21	WCI 08002385
22	WCI 3161284
23	BLOCK-SHIPPING
24	NUT-EXPANSION
25	SPRING-VERTICAL-SHORT
26	LEG & DOME
27	WCI 3161204
28	SCREW (6)
29	SPRING-VERTICAL-LONG
30	WCI 3161134
31	WCI 08008997
32	WCI 3161285
33	WCI 5303206795
34	WCI 3161286
36	5304401845 Frigidaire Tube Pressure
38	WCI 3204998
41	134190200 Frigidaire Washer Water Valve
42	WCI 3205033
44	WCI 3205034
45	5308002401 Frigidaire Washer Primary
46	BRACKET
47	WCI 08011280
48	SCREW (4)
50	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
52	WCI F064154013
53	WCI 3161207
54	WCI 08002367
55	WCI 08014193
56	WCI 3161274
57	CLIP-HARNESS
58	WCI 08006573
59	131168200 Frigidaire Dryer Screw
61	5303912532 Frigidaire Hose Inlet 60"
65	WCI F139128000
66	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
