LCE462PW0 03 – CONSOLE, CONTROLS AND DRUM

LCE462PW0 03 – CONSOLE, CONTROLS AND DRUM

Written by

in

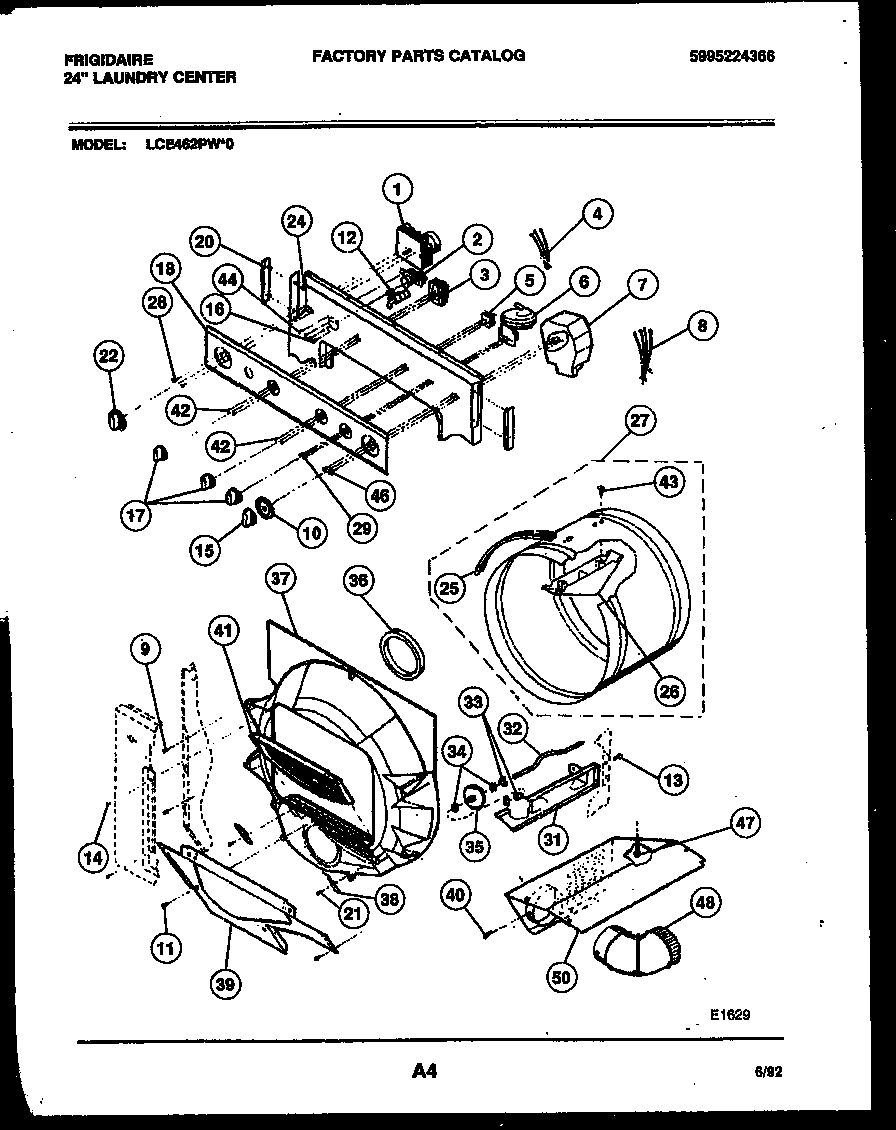

LCE462PW0 03 – CONSOLE, CONTROLS AND DRUM

Products

PositionProduct
*62615WCI 5303004951
*62615WCI 5303208455
*62615SPACER-TIMER-SHAFT
*62615WCI 08008454
*626155303303590 Frigidaire Dryer 4.0" Cable Tie
*62615RESISTOR
1WCI 5303212526
2WCI 5303212119
3WCI 3204994
4WCI 5303289658
5WCI 5308008463
6WCI 5303283044
7WCI 5303283045
8WCI 5303283046
10WCI 5303207104
11131205100 Frigidaire Screw
12WCI 3205000
13WCI 08011280
14WCI 5303285467
15WCI 5303207105
17WCI 5303207106
18WCI 5303289657
20WCI 3205006
21216858001 Frigidaire Refrigerator Screw
22WCI 5303207108
24WCI 3205008
25WCI 5303937088
26BAFFLE-DRUM (3)
27WCI 3205010
31WCI 5303161080
31AWCI 5303161081
32WCI 5308004076
33SNAP RING (4)
34WCI 08012152
35WCI 5308004077
36WCI 5303209445
37WCI 5303288388
38GUIDE (2)
39COVER-LINT HSG
40SCREW (2)
41WCI 3205015
42WCI 3161259
44WCI 08010804
46WCI 08001544
47WCI 3205016
48WCI 3205017
50WCI 3205018
