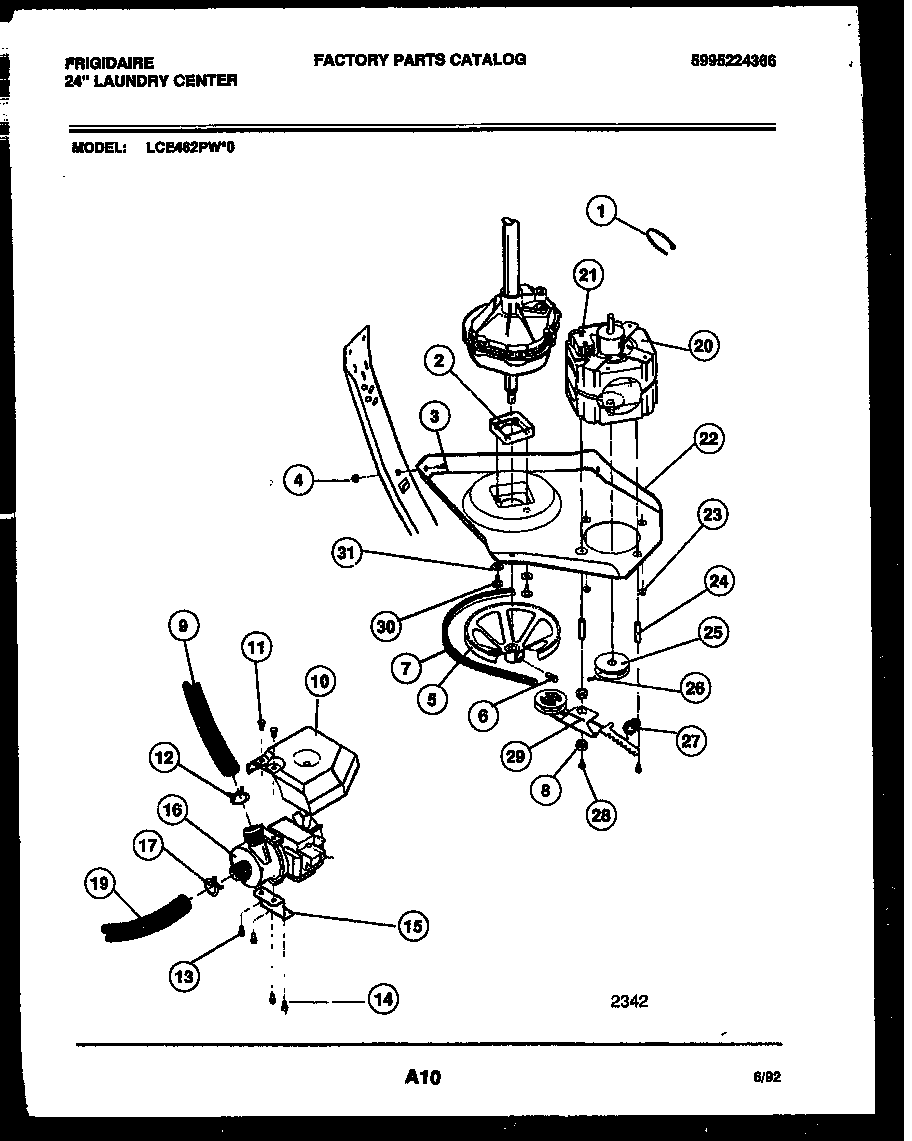

LCE462PW0 06 – WASHER DRIVE SYSTEM AND PUMP

Products

Position	Product
*62625	SPRING WASHER
*62625	CLAMP
*62625	5304527822 Frigidaire Pulley
1	5303161300 Frigidaire Strap
2	WCI 5377009100
3	WCI 3161211
4	WCI 3161212
5	WCI 5303205951
6	5303270023 Frigidaire Screw Set
7	5303280326 Frigidaire Drive Belt Assembly
8	WCI 08027535
9	WCI 5303283055
10	WCI 5303283071
12	WCI 5303283073
13	5303283072 Frigidaire Shield Screw
14	WCI 3205020
15	WCI 5303283074
16	WCI 5303285135
17	WCI 5303283076
19	WCI 5303283078
20	WCI 5308015502
21	WCI 5308014888
22	WCI 08002472
23	HEX NUT
24	WCI 5303161303
25	WCI 5308006686
26	WCI 5303206869
27	WCI 5308002456
28	WCI 5303283080
29	WCI 5303937001
30	SCREW (2)
31	RUBBER SPACER (2)
