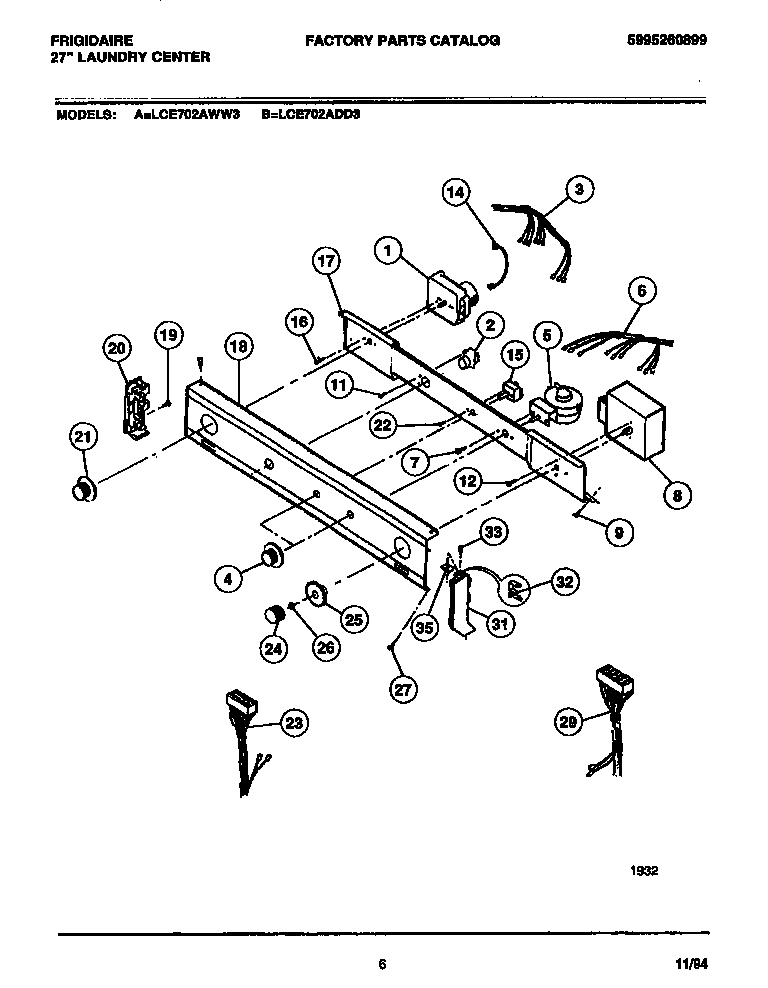

LCE702ADD3 04 – CONSOLE & CONTROLS

Products

Position	Product
*86844	SWITCH-DRYER TEMP
*86846	SPACER PAD-CONTROL PANEL BRACKET (2)
1	WCI 5303269741
2	START-SWITCH-ALMOND
3	WCI 5303270952
4	WCI 131168102
5	WCI 5303209894
6	WCI 131204500
8	WCI 5303271775
9	131168200 Frigidaire Dryer Screw
14	RESISTOR-POWER, 4.4K
15	WCI 5308008463
16	218359202 Frigidaire Refrigerator Screw
17	BRACKET-CONTROLS
18	PANEL-CONTROL-ALMD
19	131243700 Frigidaire Screw
20	WCI 5303300848
21	KNOB-DRYER-ALMD
22	WCI 3161259
23	WCI 131236700
24	KNOB-WASHER-ALMD
25	WCI 131167702
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131200500
31	WCI 5303300849
32	WCI 3204357
33	134156200 Frigidaire Screw
35	CLIP (8)
