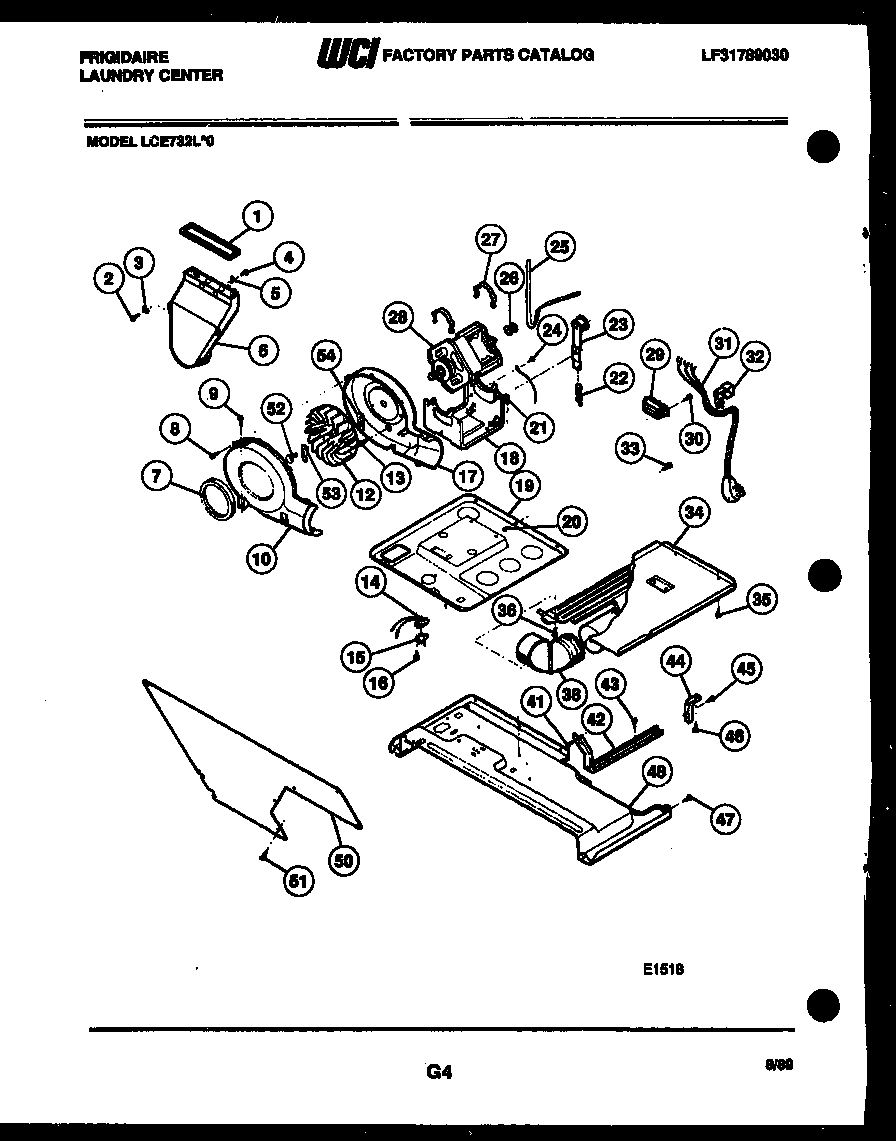

LCE732LL0 03 – MOTOR AND BLOWER PARTS

Products

Position	Product
1	SEAL – AIR DUCT
4	5303300265 Frigidaire Oven Screw
5	WCI 08014350
6	WCI 3204299
7	3204490 Frigidaire Seal
10	WCI 3204301
12	WCI 3205233
14	WCI F136777-000
15	3204307 Frigidaire Dryer Thermostat Control, L135
16	134178901 Frigidaire Screw
17	WCI 3204309
19	WCI 3204311
21	WCI 3281077
22	3205241 Frigidaire Idler Spring
23	IDLER ARM
25	WCI 3204314
26	MOTOR & PULLEY ASSEMBLY (1)
27	WCI 3204315
28	WCI 3204316
29	134037400 Frigidaire Block
30	WCI 3281024
31	5308819002 Frigidaire Dryer 30 Amp 4'3" Cord
32	WCI 3204317
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	WCI 3204319
36	131168200 Frigidaire Dryer Screw
38	ELBOW
42	BRACKET (2)
44	3204326 Frigidaire Bracket Assembly
46	SCREW (2)
47	131302800 Frigidaire Drum Vane Screw
48	WCI 3204327
50	SAFETY COVER
51	SCREW (24)
52	WCI 3205238
53	CLAMP-FRONT
54	WCI 3205237
