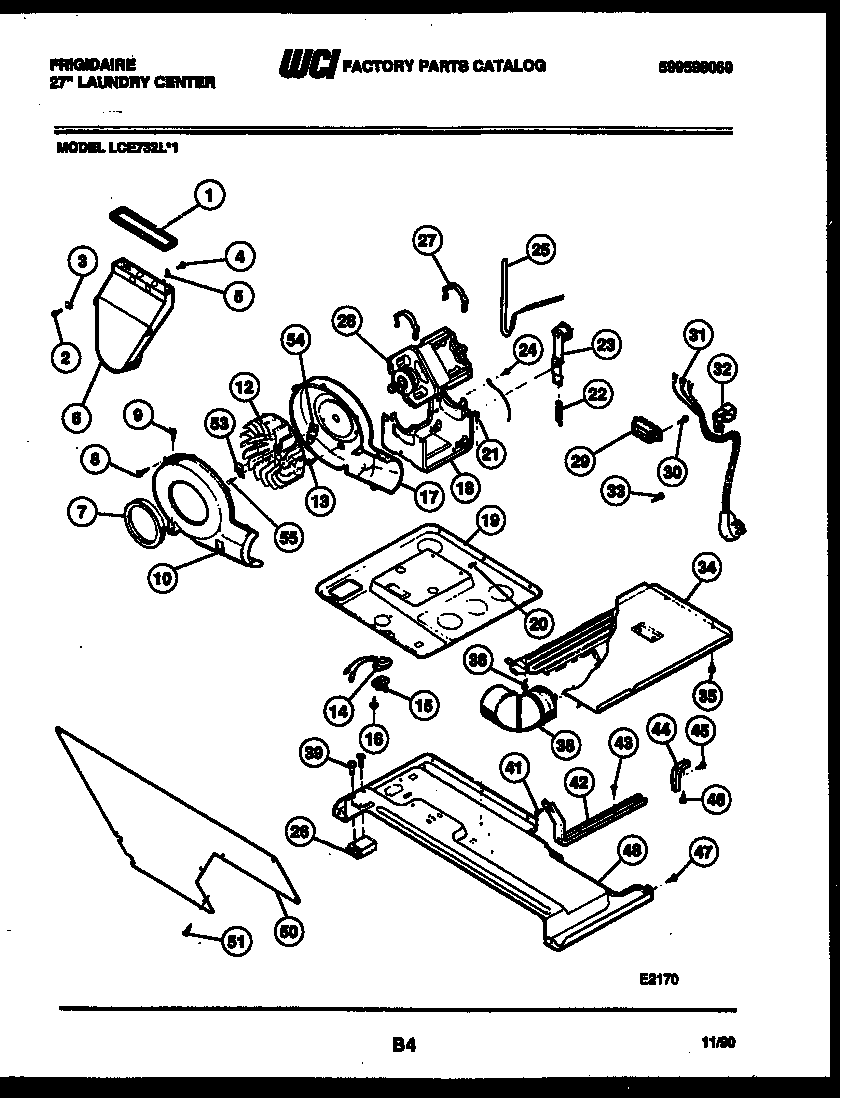

LCE732LL1 03 – MOTOR, BLOWER AND BODY ASSEMBLY

LCE732LL1 03 – MOTOR, BLOWER AND BODY ASSEMBLY

Written by

in

LCE732LL1 03 – MOTOR, BLOWER AND BODY ASSEMBLY

Products

PositionProduct
*39736131453000 Frigidaire Bushing
1SEAL – AIR DUCT
45303300265 Frigidaire Oven Screw
5WCI 08014350
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
10WCI 3204301
12WCI 5303937064
13SCREW (24)
14WCI F136777-000
153204307 Frigidaire Dryer Thermostat Control, L135
16134178901 Frigidaire Screw
17WCI 3204309
19WCI 3204311
21WCI 3281077
223205241 Frigidaire Idler Spring
23IDLER ARM
25WCI 3204314
26BLOCK-SUPPORT
27WCI 5303212834
28MOTOR & PULLEY (DRYER)
29134037400 Frigidaire Block
30WCI 3281024
315308819002 Frigidaire Dryer 30 Amp 4'3" Cord
32WCI 3204317
33134154100 Frigidaire Screw 10-32 x 0.375 Co
34WCI 3204319
36131168200 Frigidaire Dryer Screw
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
443204326 Frigidaire Bracket Assembly
45WCI 08011280
46SCREW (2)
47131302800 Frigidaire Drum Vane Screw
48137455500 Frigidaire Lower Pan Assembly
50SAFETY COVER
53CLAMP-FRONT
54WCI 3205237
55WCI 3205238
