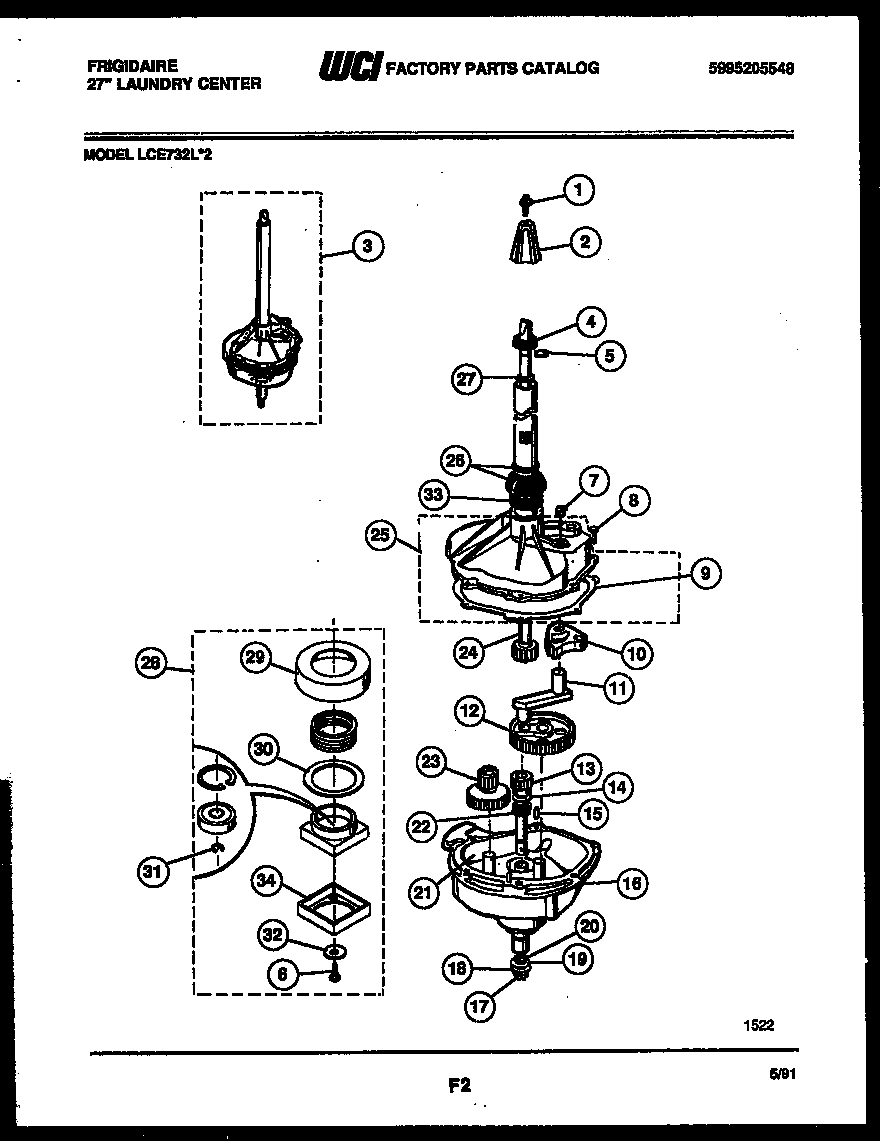

LCE732LL2 07 – TRANSMISSION PARTS

Products

Position	Product
*45274	SHIM-DRIVE HUB
1	WCI 3204461
2	134418700 Frigidaire Agitator Drive Hub
3	WCI 3205526
4	5303161307 Frigidaire Dryer Seal Assembly
6	WCI 08027582
7	PIPE PLUG
8	SCREW (6)
9	WCI 08015778
10	WCI 08011268
11	WCI 3161169
12	WCI 08015496
13	WCI 08014905
15	DOWEL PIN
16	WCI F140586-000
17	WCI 3161223
18	WCI 08002475
19	THRUST WASHER
20	5303161173 Frigidaire Seal Assembly
21	OIL-TRANSMISSION (1 QT)
22	LGS SPRING-SMALL
23	WCI 3161175
24	WCI 3204463
25	WCI 3205527
26	WCI 08950197
27	THRUST WASHER
28	WCI 08950058
29	SLEEVE-CLUTCH COIL
30	WCI 08057430
31	WCI 08015536
32	RUBBER SPACER (2)
33	WCI 3161231
34	WCI 5377009100
