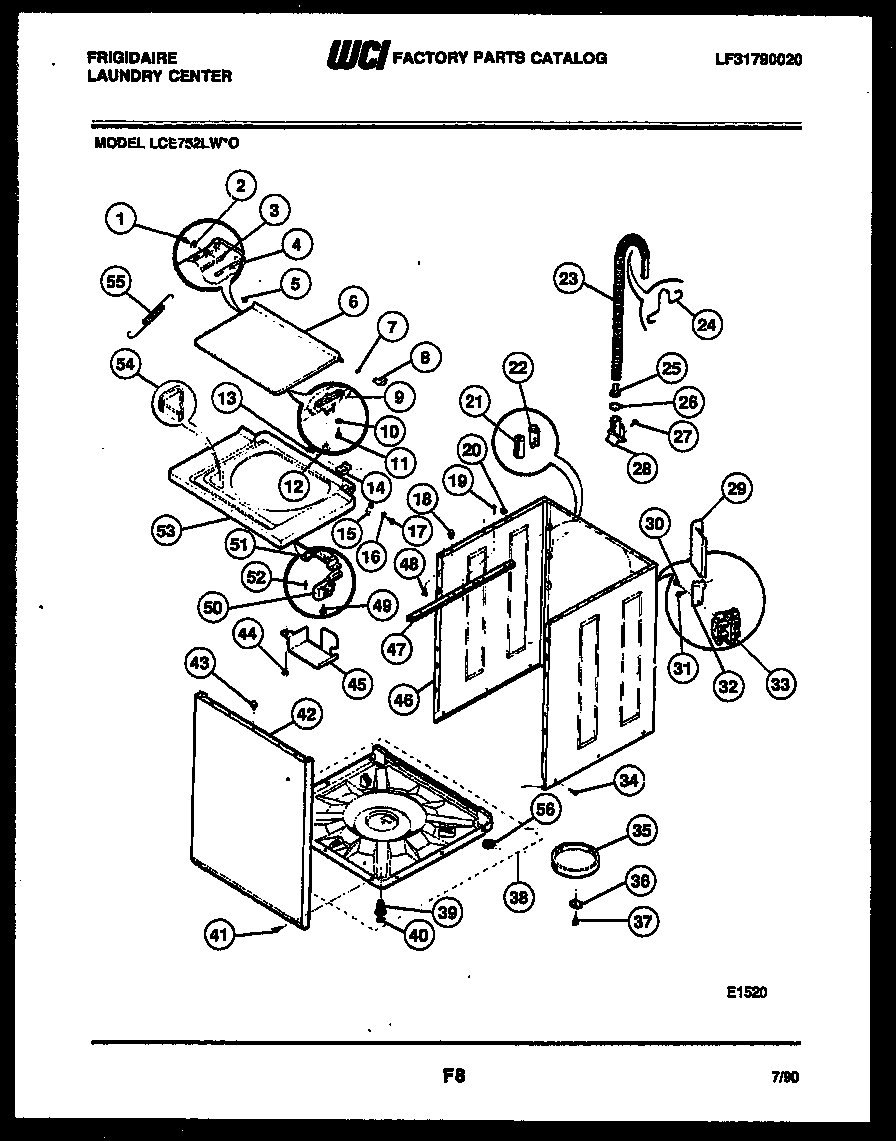

LCE752LL0 05 – CABINET PARTS

Products

Position	Product
1	WCI 3204359
3	WCI 3204360
4	5304489657 Frigidaire Bar Hinge Kit
5	5303208743 Frigidaire Grommet
6	WCI 3204364
7	WCI 3204365
8	WCI 3204366
9	131390000 Frigidaire Door Catch-Strike
10	WCI 5308002408
11	3204368 Frigidaire Screw-Strike
12	134075500 Frigidaire Bumper-LID
14	WCI 3204370
15	WCI 3204371
16	5300809968 Frigidaire Dishwasher P-1 Washer
17	WCI F000131686
20	3204374 Frigidaire Pin
21	WCI 5308014903
22	WCI 5303161252
23	WCI 3205414
24	RETAINER
25	3204375 Frigidaire Check Valve
26	WCI 5364154013
27	131205100 Frigidaire Screw
28	WCI 3204376
29	WCI 3204377
30	WCI 5303010202
31	5303015671 Frigidaire Bracket Termination Screw
32	WCI 3204378
33	134190200 Frigidaire Washer Water Valve
34	131205500 Frigidaire Screw
35	SNUBBER RING
36	SHIPPING BLOCK
37	SHIPPING SCREW
38	WCI 3204382
39	LEVELING LEG & PAD
41	131302800 Frigidaire Drum Vane Screw
42	WCI 3204385
43	PIN - LOCATING
44	SEMS SCREW (2)
45	WCI 3204386
46	WCI 3204388
47	BRACKET (2)
48	SCREW
49	SCREW
50	WCI 3205646
51	WCI 3204391
52	RIVET (3)
53	WCI 3204393
54	WCI 3204394
55	WCI 3205251
56	WCI 3204383
