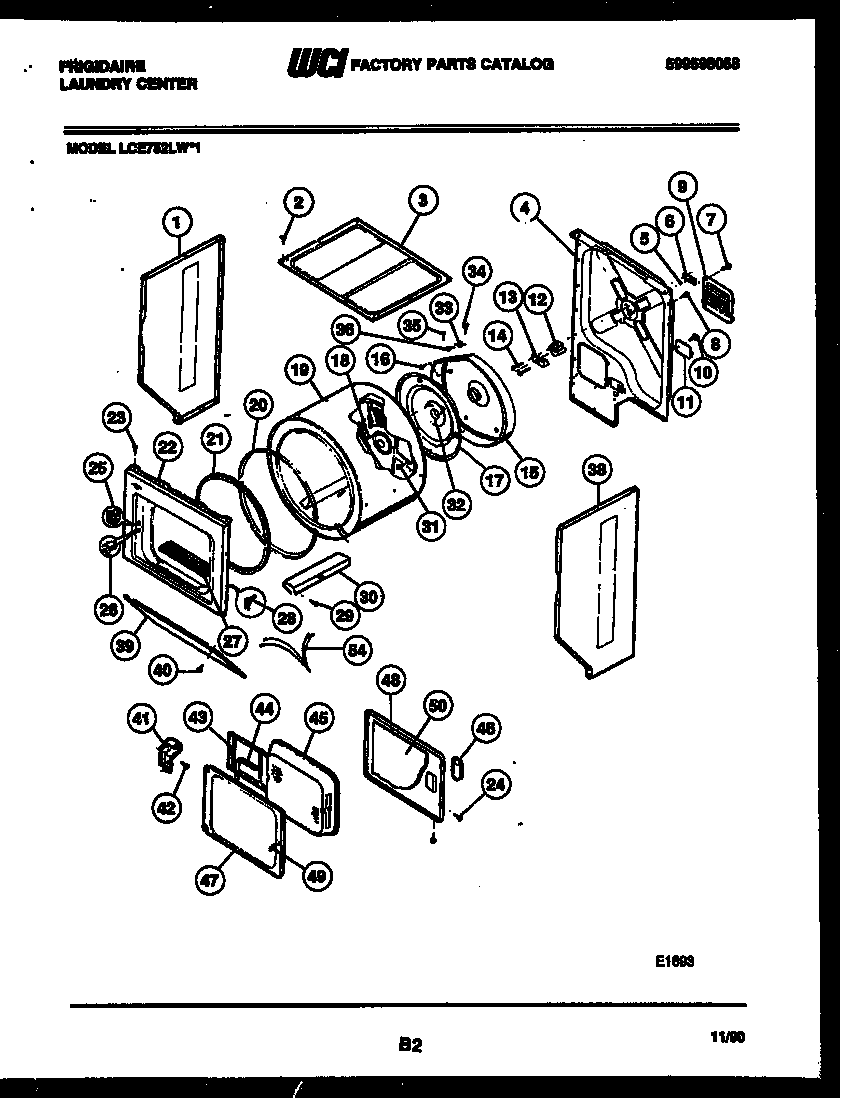

LCE752LL1 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*38405	316205500 Frigidaire Oven Nut
1	WCI 3204246
3	131883301 Frigidaire Panel
4	PANEL – REAR
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	WCI 3204250
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	3937010 Frigidaire Dryer Heating Element Coil Kit
17	3204254 Frigidaire Baffle Assembly
18	SCREW (3) (PART OF REAR BEARING KIT.)
19	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20	(RING) BEARING
21	WCI 3204260
22	WCI 3205630
23	WCI 08011280
24	SCREW (8)
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	SWITCH-DOOR
27	WCI 3204264
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	WCI 5303207393
32	5303931781 Frigidaire Shaft
33	SAFETY THERMSTAT
34	131168200 Frigidaire Dryer Screw
35	WCI 3204269
36	WCI 3204270
38	WCI 3204272
39	WCI 3204274
40	SCREW
41	HINGE-UPPER
41	HINGE-LOWER
42	131302800 Frigidaire Drum Vane Screw
46	WCI 3204282
47	WCI 5303207398
48	WCI 3204285
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
54	WCI 3205631
