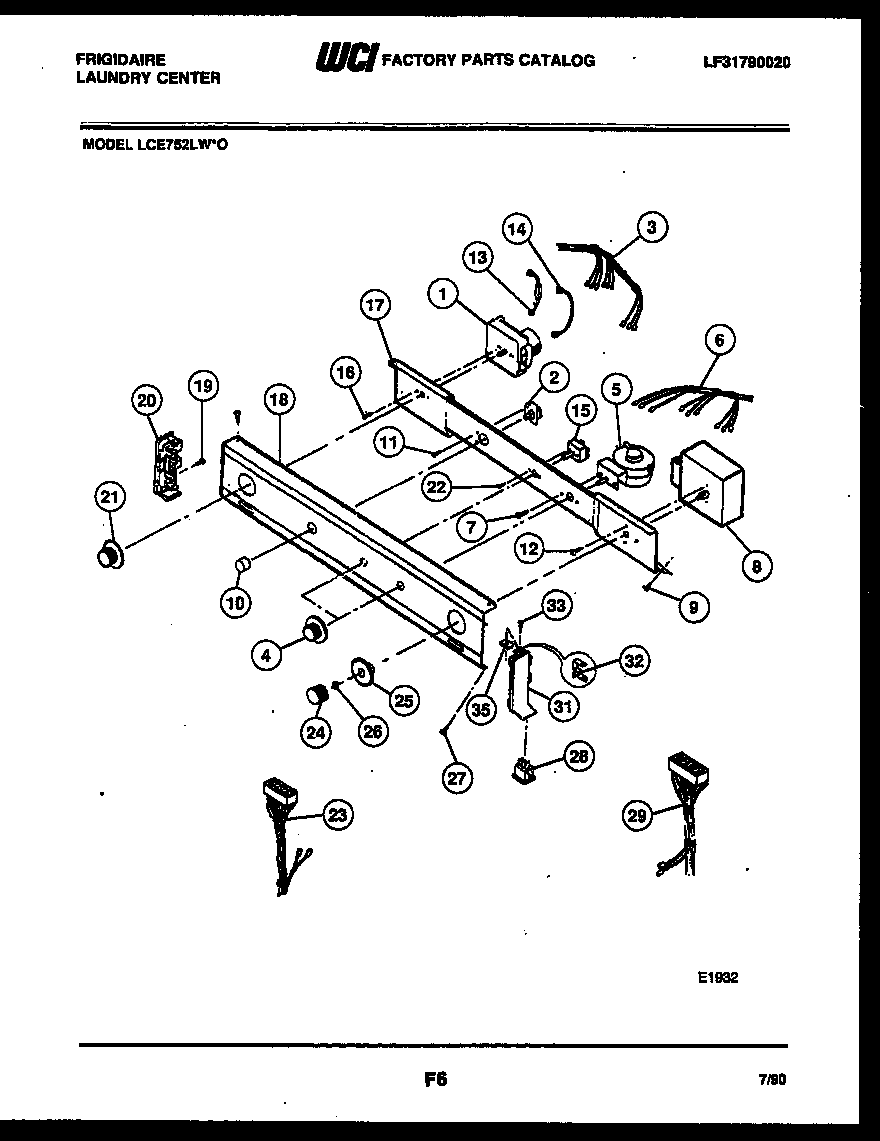

LCE752LW0 04 – CONSOLE AND CONTROL PARTS

LCE752LW0 04 – CONSOLE AND CONTROL PARTS

Written by

in

LCE752LW0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1DRYER TIMER
2WCI 3205632
3WCI 5303209139
4WCI 3205634
5WCI 3205635
6WCI 5303209141
8WCI 5303209142
9131302800 Frigidaire Drum Vane Screw
10WCI 3205638
11WCI 08001544
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
15SWITCH-WATER TEMP
16SCREW (2)
17WCI 3205639
18WCI 5303209143
19131168200 Frigidaire Dryer Screw
20WCI 3204343
21WCI 3205641
22WCI 3161259
23WCI 5303209144
24WCI 3205643
25INDICATOR – WASHER TIMER
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 5303209145
31WCI 3204353
32WCI 3204357
33SCREW (2)
35CLIP (8)
