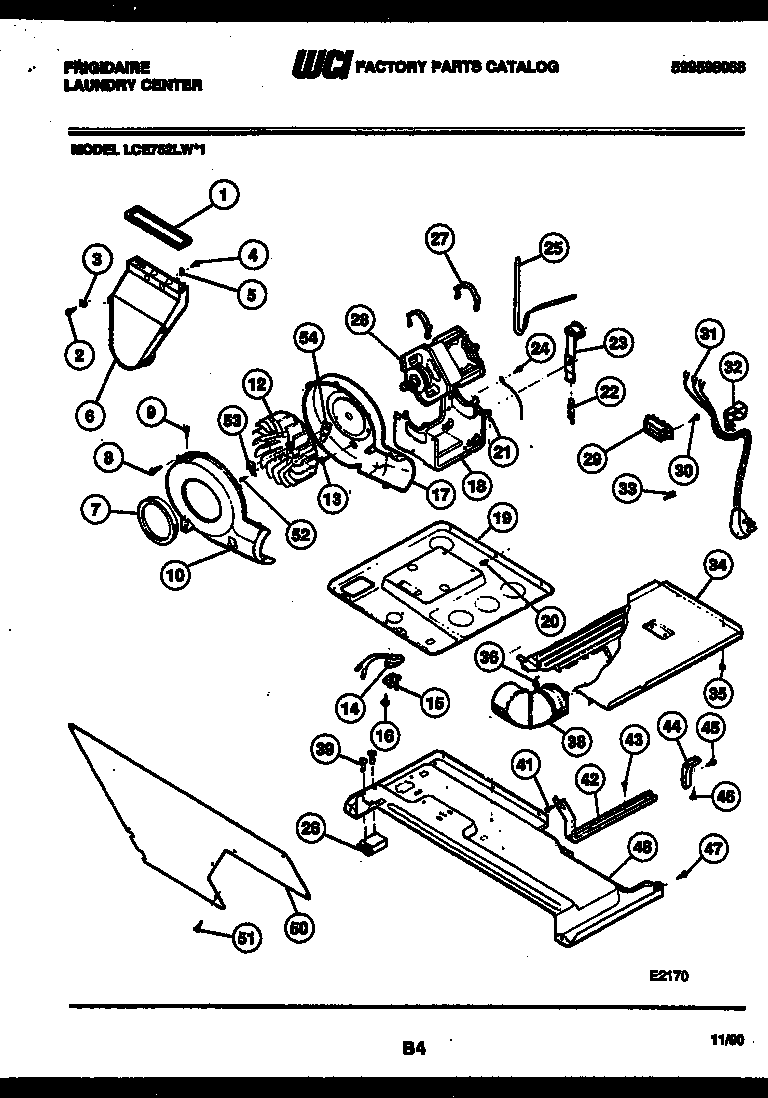

LCE752LW1 03 – MOTOR AND BLOWER PARTS

Products

Position	Product
*38408	131453000 Frigidaire Bushing
1	SEAL – AIR DUCT
4	5303300265 Frigidaire Oven Screw
5	CLIP (8)
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
10	WCI 3204301
12	WCI 5303937064
14	WCI 5303206879
15	3204307 Frigidaire Dryer Thermostat Control, L135
16	134178901 Frigidaire Screw
17	WCI 3204309
19	WCI 3204311
20	131168200 Frigidaire Dryer Screw
21	WCI 3281077
22	3205241 Frigidaire Idler Spring
23	IDLER ARM
25	WCI 3204314
26	BLOCK-SUPPORT
27	WCI 5303212834
28	MOTOR & PULLEY (DRYER)
29	134037400 Frigidaire Block
30	WCI 5308015309
31	5308819002 Frigidaire Dryer 30 Amp 4'3" Cord
32	WCI 3204317
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	WCI 3204319
38	ELBOW
39	WCI 5308006533
42	BRACKET (2)
43	WCI 5303209104
44	3204326 Frigidaire Bracket Assembly
45	WCI 08011280
46	SCREW (2)
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
51	131302800 Frigidaire Drum Vane Screw
52	WCI 3205238
53	CLAMP-FRONT
54	WCI 3205237
