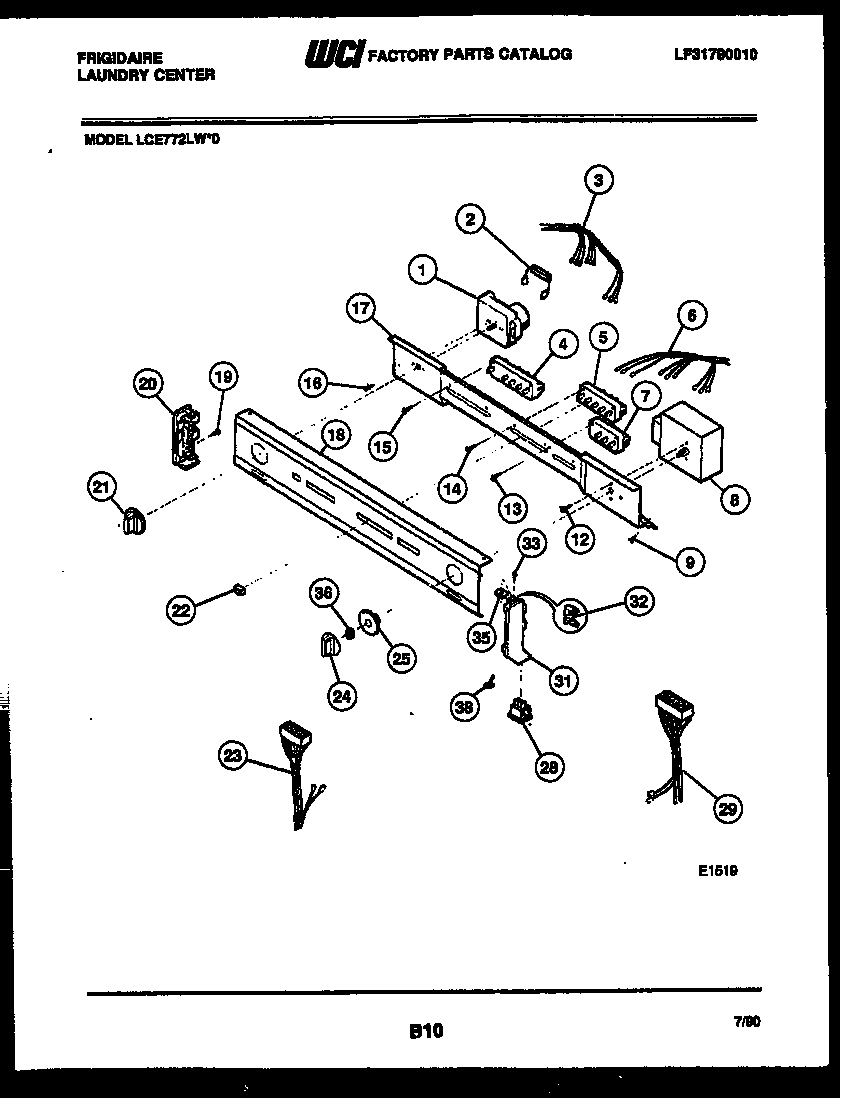

LCE772LL0 04 – CONSOLE AND CONTROL PARTS – Aparts

LCE772LL0 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3204330
2	RESISTOR-POWER, 4.4K
3	WCI 3204331
4	SWITCH-TEMP DRYER
5	SWITCH-TEMP WASHER
6	HARNESS-WASHER CONTROL
7	WCI 3204335
8	TIMER-WASHER
9	131302800 Frigidaire Drum Vane Screw
16	SCREW (2)
17	WCI 5303209112
18	PANEL-CONTROL
19	131168200 Frigidaire Dryer Screw
20	WCI 3204343
21	WCI 3205641
22B	WCI 5303207416
22	PUSHBUTTON (5) SQUARE
22A	PUSHBUTTON (6) ROUNDED
23	WCI 3205246
24	WCI 3205643
25	INDICATOR - WASHER TIMER
28	WCI 5303209123
29	HARNESS-WASHER
31	WCI 3204353
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
36	SPACER-TIMER-SHAFT
38	SCREW (2)
