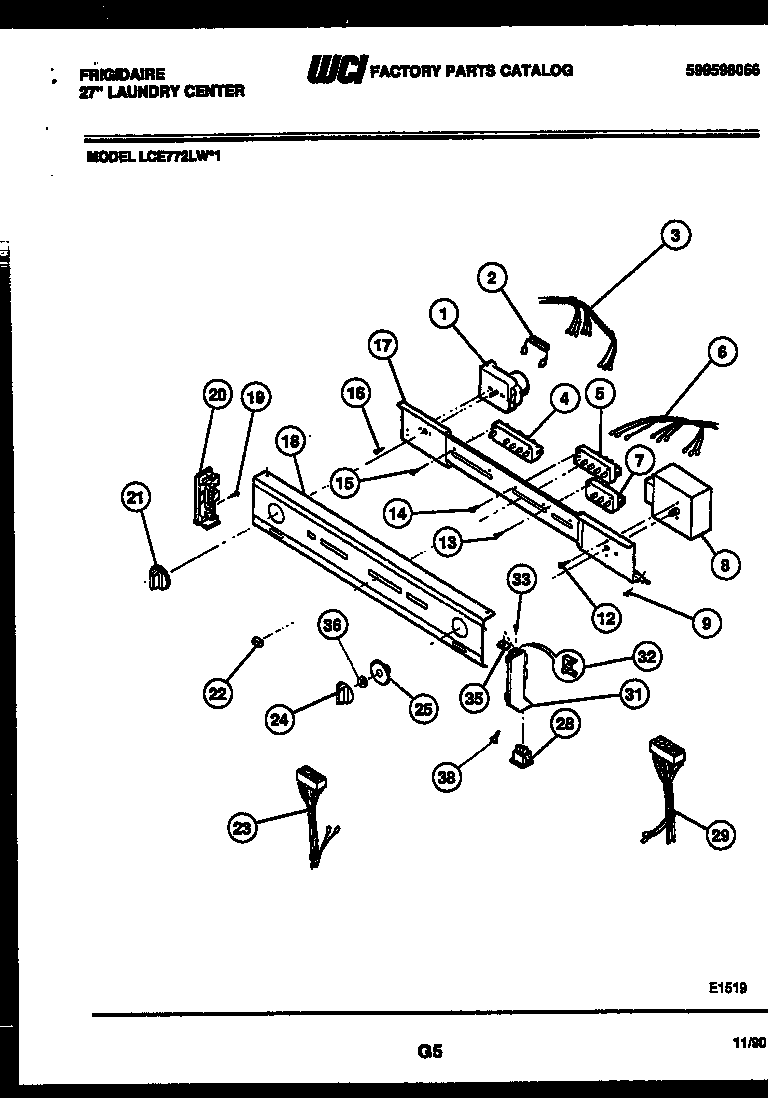

LCE772LL1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*38244	SPACER PAD-CONTROL PANEL BRACKET (2)
1	WCI 5303269741
2	RESISTOR-POWER, 4.4K
3	WCI 3204331
4	SWITCH-TEMP DRYER
5	SWITCH-TEMP WASHER
6	HARNESS-WASHER CONTROL
7	WCI 3204335
8	TIMER-WASHER
9	131302800 Frigidaire Drum Vane Screw
16	SCREW (2)
17	WCI 5303209112
18	PANEL-CONTROL
19	131168200 Frigidaire Dryer Screw
20	WCI 5303209671
21	KNOB-DRYER
22B	WCI 5303207416
22A	PUSHBUTTON (6) ROUNDED
22	PUSHBUTTON (5) SQUARE
23	WCI 3205246
24	WCI 3205643
25	INDICATOR - WASHER TIMER
28	WCI 5303209123
29	HARNESS-WASHER
31	WCI 5303209675
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
36	SPACER-TIMER-SHAFT
38	SCREW (2)
