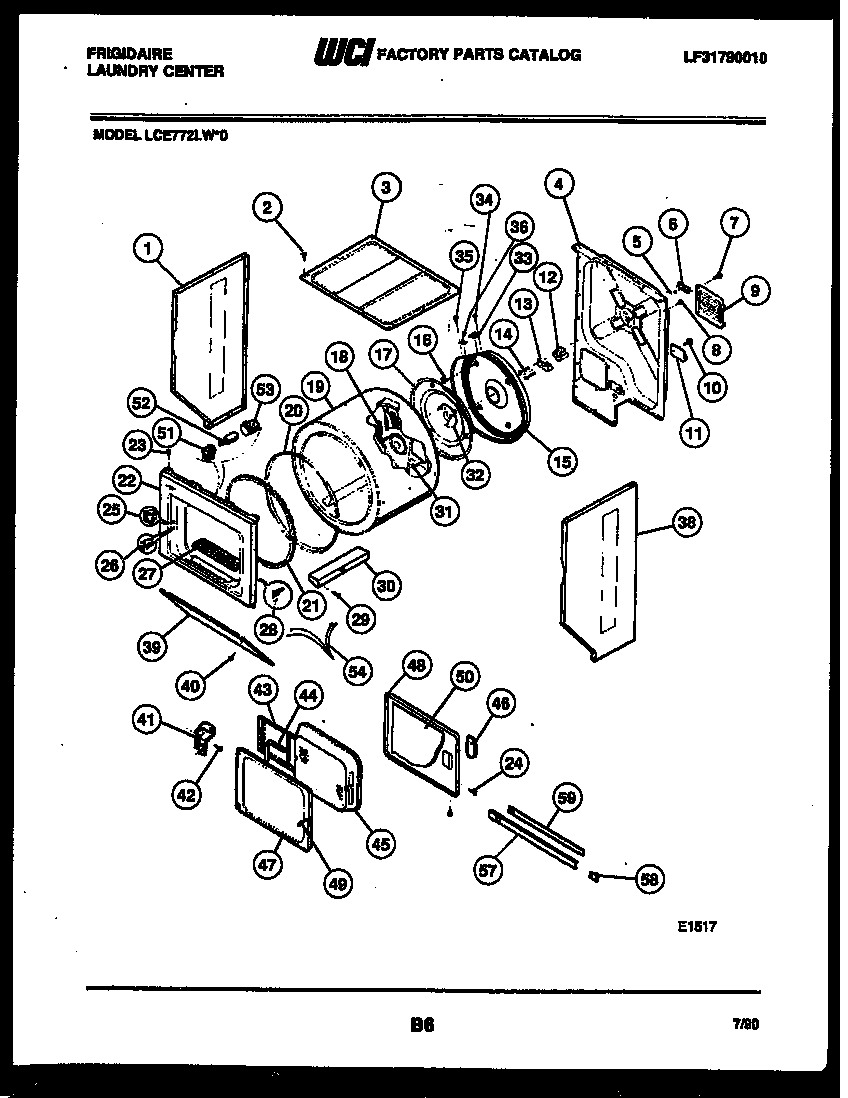

LCE772LW0 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*33535	316205500 Frigidaire Oven Nut
*33535	WCI 3204290
1	PANEL – SIDE – WHITE
3	131883301 Frigidaire Panel
4	PANEL – REAR
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	WCI 3204250
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	3937010 Frigidaire Dryer Heating Element Coil Kit
16	131168200 Frigidaire Dryer Screw
17	3204254 Frigidaire Baffle Assembly
18	WCI 5303805255
19	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20	(RING) BEARING
21	WCI 3204260
22	PANEL – FRONT – WHITE
23	WCI 08011280
24	SCREW (8)
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	DOOR-SWITCH
27	WCI 3204263
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	SCREW-BAFFLE TO DRUM (3)
32	5303931781 Frigidaire Shaft
33	SAFETY THERMSTAT
34	5303300265 Frigidaire Oven Screw
35	WCI 3204269
36	WCI 3204270
38	PANEL – SIDE – WHITE
39	PANEL-ACCESS, WHITE
40	WCI 5308011318
41	HINGE-UPPER
41	HINGE-LOWER
42	131302800 Frigidaire Drum Vane Screw
43	WCI 3204278
44	WCI 3204279
45	HOUSING – LINT FILTER – WHITE
46	WCI 3204281
47	WCI 3204283
48	WCI 3204284
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
51	WCI 3204287
52	WCI 5308027430
53	WCI 3204288
54	WCI 3204289
57	WCI 5303209062
58	WCI 3204293
59	WCI 3204294
