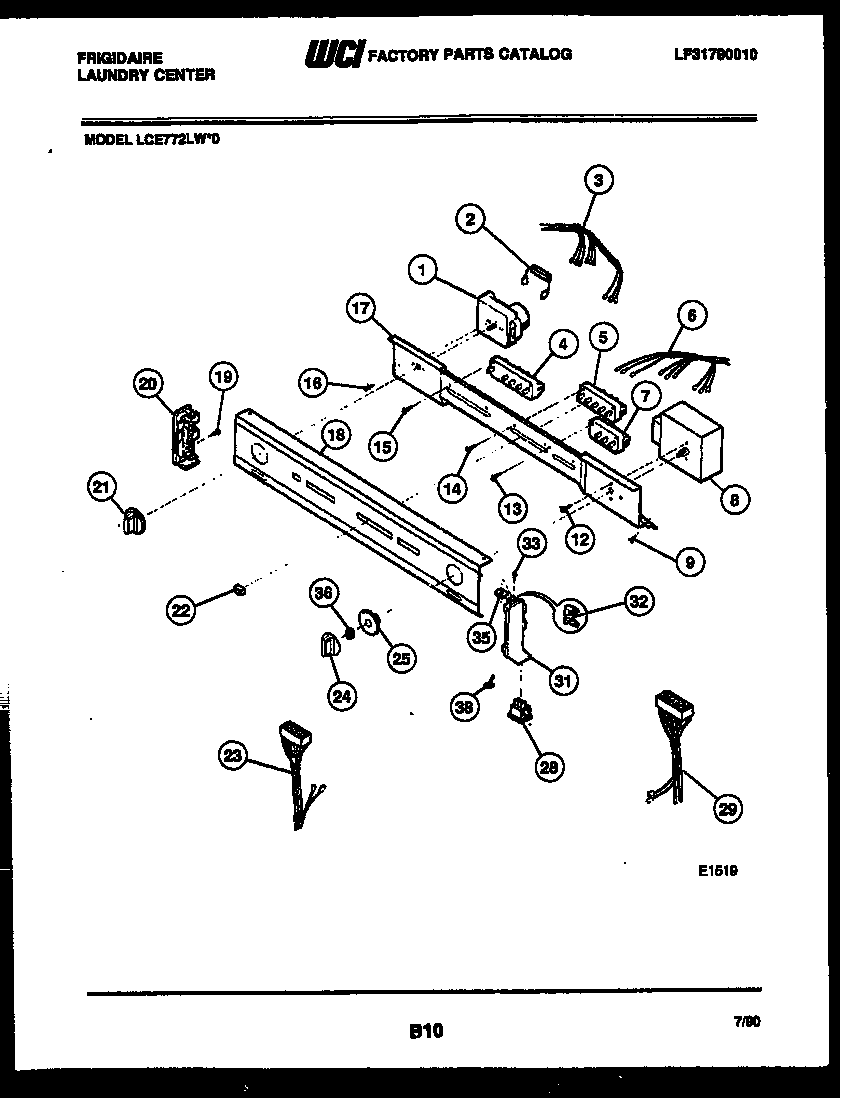

LCE772LW0 04 – CONSOLE AND CONTROL PARTS

LCE772LW0 04 – CONSOLE AND CONTROL PARTS

Written by

in

LCE772LW0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1WCI 3204330
2RESISTOR-POWER, 4.4K
3WCI 3204331
4SWITCH-TEMP DRYER
5SWITCH-TEMP WASHER
6HARNESS-WASHER CONTROL
7WCI 3204335
8TIMER-WASHER
9131302800 Frigidaire Drum Vane Screw
16SCREW (2)
17WCI 5303209112
18PANEL-CONTROL
19131168200 Frigidaire Dryer Screw
20WCI 3204343
21WCI 3205641
22BWCI 5303207416
22PUSHBUTTON (5) SQUARE
22APUSHBUTTON (6) ROUNDED
23WCI 3205246
24WCI 3205643
25INDICATOR – WASHER TIMER
28WCI 5303209123
29HARNESS-WASHER
31WCI 3204353
32WCI 3204357
33SCREW (2)
35CLIP (8)
36SPACER-TIMER-SHAFT
38SCREW (2)
