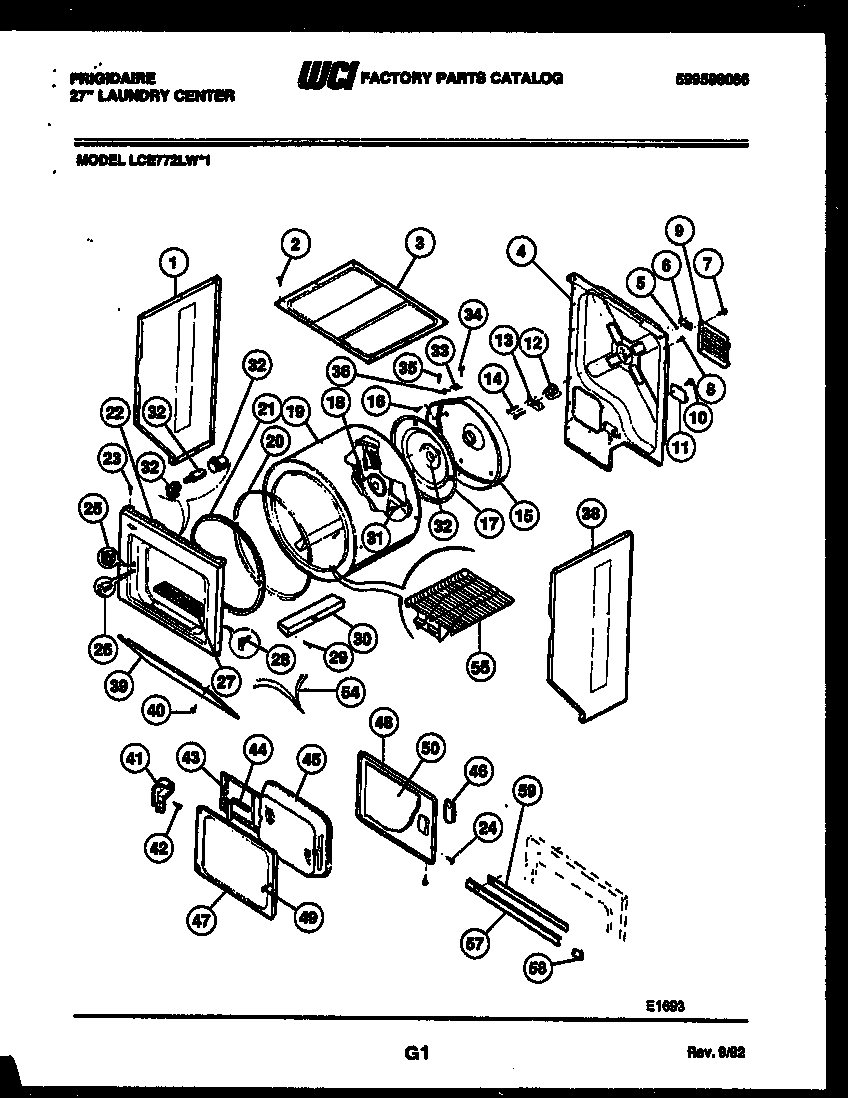

LCE772LW1 02 – CABINET AND COMPONENT PARTS

LCE772LW1 02 – CABINET AND COMPONENT PARTS

Written by

in

LCE772LW1 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
*38238316205500 Frigidaire Oven Nut
1PANEL – SIDE – WHITE
3131883301 Frigidaire Panel
4PANEL – REAR
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11WCI 3204250
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
153937010 Frigidaire Dryer Heating Element Coil Kit
173204254 Frigidaire Baffle Assembly
18WCI 5303805255
19134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20(RING) BEARING
21WCI 3204260
22PANEL – FRONT – WHITE
23WCI 08011280
24SCREW (8)
25131658800 Frigidaire Dryer Door Catch Repair Kit
26DOOR-SWITCH
27WCI 3204263
28CLIP GUIDE (4)
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
31WCI 5303207393
325303931781 Frigidaire Shaft
33SAFETY THERMSTAT
34131168200 Frigidaire Dryer Screw
35WCI 3204269
36WCI 3204270
38PANEL – SIDE – WHITE
39PANEL-ACCESS, WHITE
40SCREW
41HINGE-UPPER
41HINGE-LOWER
42131302800 Frigidaire Drum Vane Screw
43WCI 3204278
44WCI 5303208613
45HOUSING – LINT FILTER – WHITE
46WCI 3204281
47WCI 3204283
48WCI 3204284
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
51RECEPTACLE-LAMP
52131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
53WCI 3204288
54WCI 5303212869
55WCI 3204290
57WCI 5303211063
58WCI 3204293
59WCI 3204294
