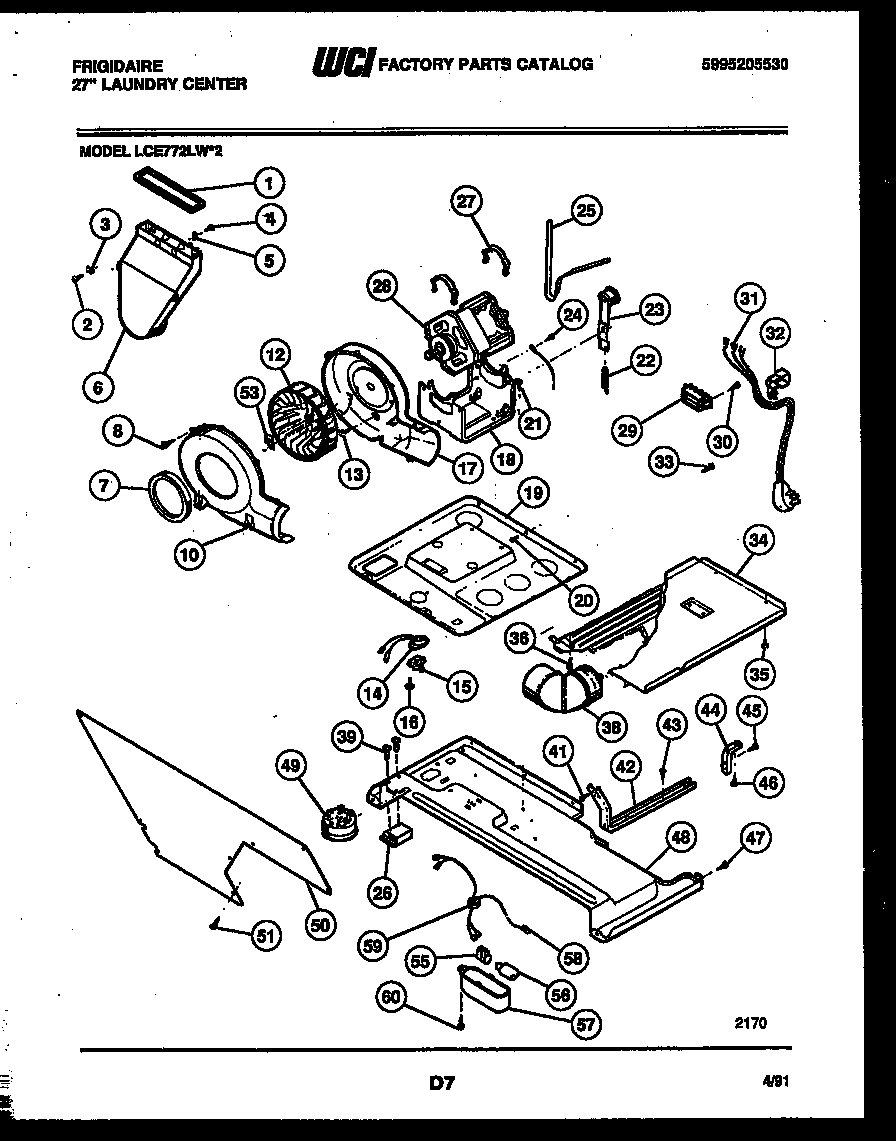

LCE772LW2 03 – MOTOR, BLOWER AND BODY ASSEMBLY

Products

Position	Product
*45168	131453000 Frigidaire Bushing
1	SEAL – AIR DUCT
4	5303300265 Frigidaire Oven Screw
5	CLIP (8)
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
12	BLOWER WHEEL
14	WCI 5303206879
15	3204307 Frigidaire Dryer Thermostat Control, L135
16	134178901 Frigidaire Screw
17	WCI 5303271179
19	WCI 3204311
20	131168200 Frigidaire Dryer Screw
21	WCI 3281077
22	3205241 Frigidaire Idler Spring
23	IDLER ARM
25	WCI 3204314
26	BLOCK-SUPPORT
27	WCI 5303212834
28	MOTOR & PULLEY (DRYER)
29	134037400 Frigidaire Block
30	WCI 5308015309
31	5308819002 Frigidaire Dryer 30 Amp 4'3" Cord
32	WCI 3204317
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	WCI 3204319
38	ELBOW
39	131205100 Frigidaire Screw
42	BRACKET (2)
43	WCI 5303209104
44	3204326 Frigidaire Bracket Assembly
45	WCI 08011280
46	SCREW (2)
48	137455500 Frigidaire Lower Pan Assembly
49	SWITCH-PRESSURE
50	SAFETY COVER
51	131302800 Frigidaire Drum Vane Screw
53	5304488479 Frigidaire Washer Hose Clamp
55	RECEPTACLE-LAMP
56	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
57	WCI 5303209106
58	WCI 5303269740
59	WCI 5303209108
