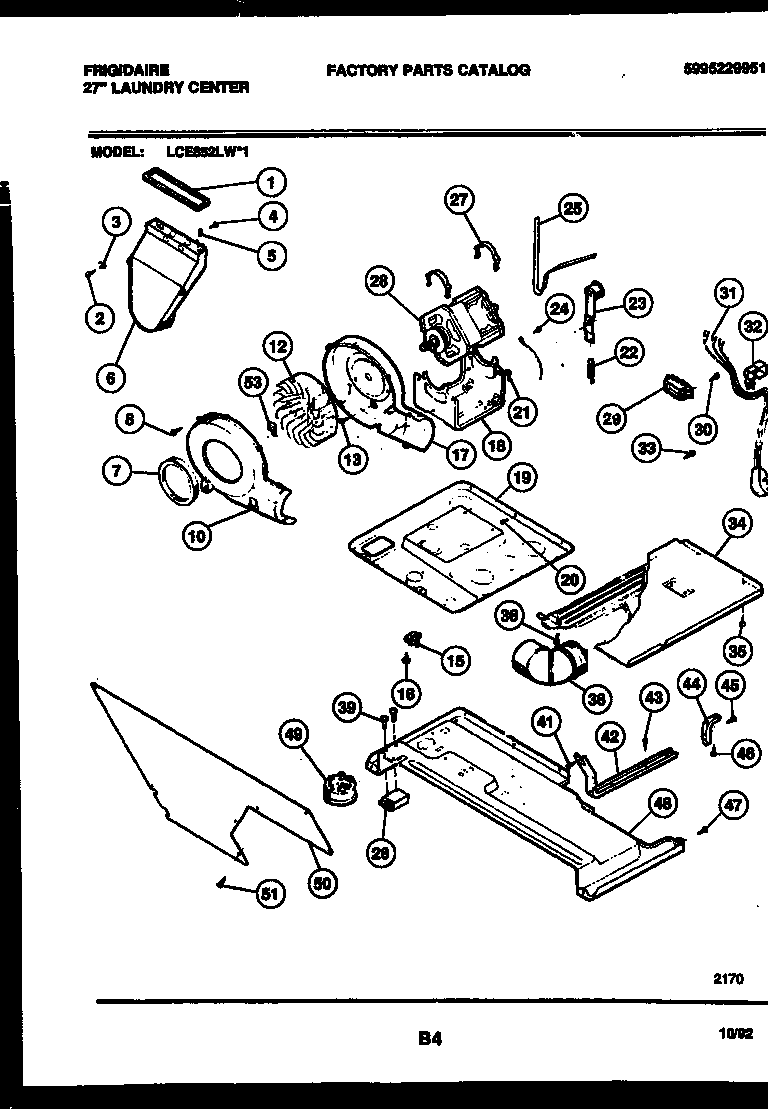

LCE852LW1 03 – MOTOR, BLOWER AND CABINET PARTS

Products

Position	Product
*68499	131453000 Frigidaire Bushing
1	SEAL - AIR DUCT
4	5303300265 Frigidaire Oven Screw
5	CLIP (8)
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
12	BLOWER WHEEL
15	WCI 5303272048
16	134178901 Frigidaire Screw
17	WCI 5303271179
19	WCI 3204311
20	131168200 Frigidaire Dryer Screw
21	WCI 3281077
22	3205241 Frigidaire Idler Spring
23	IDLER ARM
25	BELT-DRYER LC
26	BLOCK-SUPPORT
27	WCI 5303212834
28	WCI 5303283288
29	134101400 Frigidaire Dryer Kit Terminal Block
30	WCI 5303272050
31	WCI 5303212832
32	WCI 3204317
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	WCI 3204319
38	ELBOW
39	131205100 Frigidaire Screw
42	BRACKET (2)
44	3204326 Frigidaire Bracket Assembly
45	WCI 08011280
46	SCREW (2)
48	137455500 Frigidaire Lower Pan Assembly
49	WCI 5303272052
50	SAFETY COVER
51	131302800 Frigidaire Drum Vane Screw
53	5304488479 Frigidaire Washer Hose Clamp
