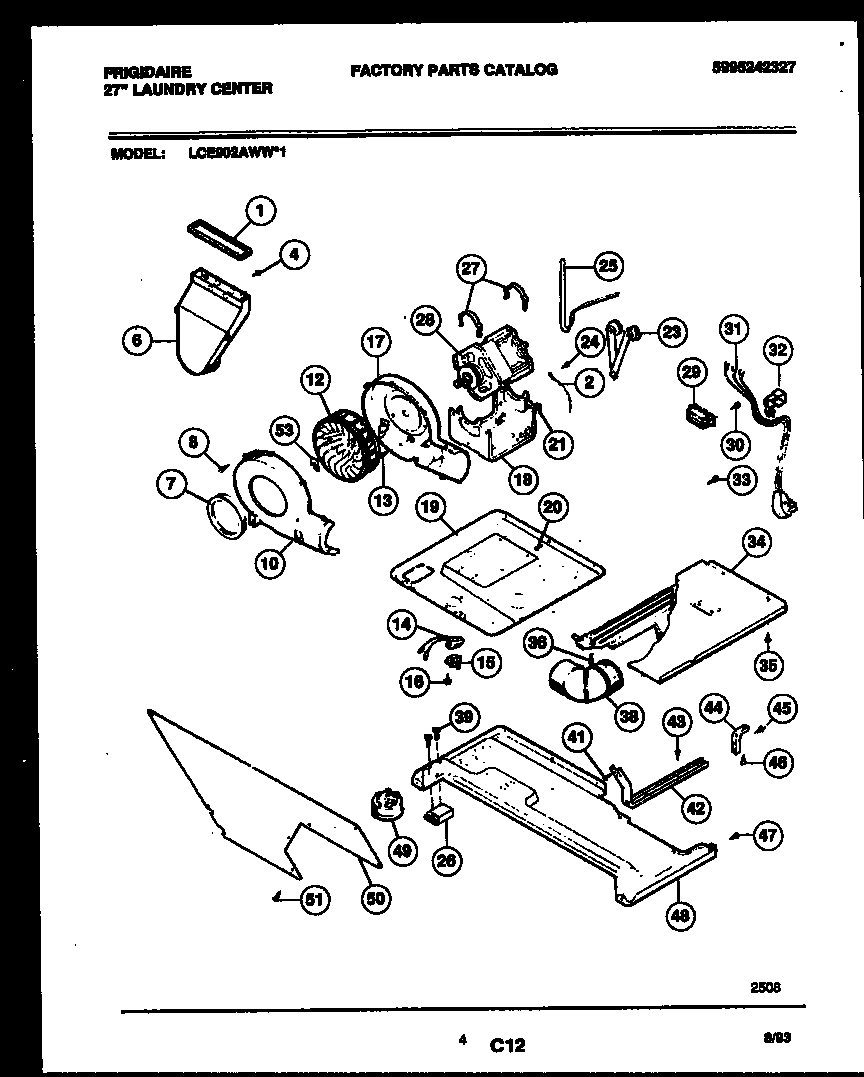

LCE902ADD1 03 – MOTOR, BLOWER AND CABINET PARTS

LCE902ADD1 03 – MOTOR, BLOWER AND CABINET PARTS

Written by

in

LCE902ADD1 03 – MOTOR, BLOWER AND CABINET PARTS

Products

PositionProduct
*82433131453000 Frigidaire Bushing
1WCI 131151200
2WCI 131062205
4SCREW (2)
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
12BLOWER WHEEL
14WCI 5303206879
15WCI 131073400
16134178901 Frigidaire Screw
17WCI 5303271179
19WCI 3204311
21WCI 3281077
23WCI 131131501
25134503600 Frigidaire Dryer Belt
26BLOCK-SUPPORT
27WCI 5303212834
28WCI 131198500
29134037400 Frigidaire Block
30WCI 5308015309
31WCI 5303212832
32WCI 3204317
33134154100 Frigidaire Screw 10-32 x 0.375 Co
34SHIELD-ACCESS
36131168200 Frigidaire Dryer Screw
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
443204326 Frigidaire Bracket Assembly
45WCI 08011280
46SCREW (2)
48137455500 Frigidaire Lower Pan Assembly
49WCI 5303293375
50SAFETY COVER
51131302800 Frigidaire Drum Vane Screw
535304488479 Frigidaire Washer Hose Clamp
