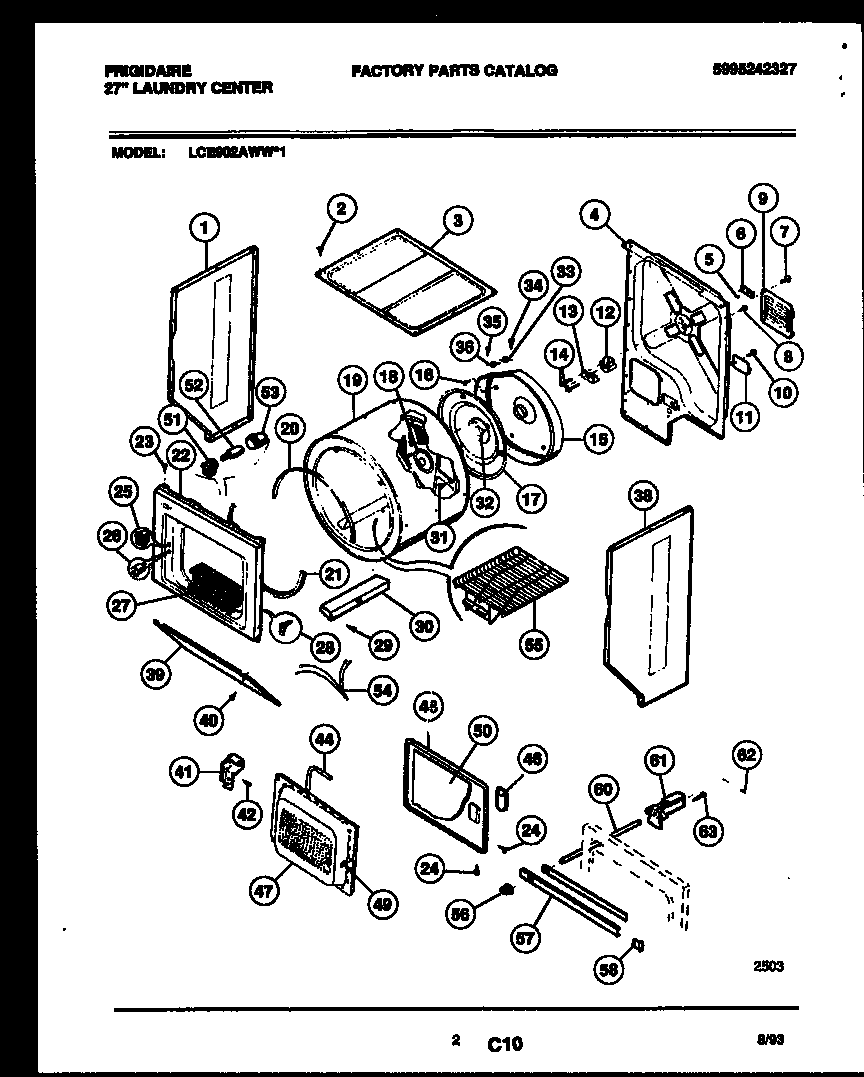

LCE902AWW1 02 – CABINET AND COMPONENT PARTS

LCE902AWW1 02 – CABINET AND COMPONENT PARTS

Written by

in

LCE902AWW1 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
1WCI 131084700
3131883301 Frigidaire Panel
4WCI 5303283283
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11WCI 3204250
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
153937010 Frigidaire Dryer Heating Element Coil Kit
173204254 Frigidaire Baffle Assembly
18SCREW (3) (PART OF REAR BEARING KIT.)
19134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
215303283286 Frigidaire Drum Felt Seal Lower Front
22WCI 131150712
23WCI 08011280
24SCREW (8)
25131658800 Frigidaire Dryer Door Catch Repair Kit
26DOOR-SWITCH
27LINT FILTER
28CLIP GUIDE (4)
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
31WCI 5303207393
325303931781 Frigidaire Shaft
33WCI 5303272046
34131168200 Frigidaire Dryer Screw
35WCI 08010804
36134120900 Frigidaire Dryer Limiter Thermal
38WCI 131084800
39137546910 Frigidaire Panel
40131202300 Frigidaire Screw
41HINGE-UPPER
41HINGE-LOWER
42A131302800 Frigidaire Drum Vane Screw
44137551901 Frigidaire Gasket
45HOUSING – LINT FILTER – WHITE
46WCI 131063600
47WCI 5303300245
48WCI 3204284
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
51RECEPTACLE-LAMP
52131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
53WCI 3204288
54WCI 5303212869
55RACK-DRYER
56WCI 5303300844
57WCI 131191600
58WCI 5303300846
59ADHESIVE STRIP
60WCI 3204296
61WCI 3204295
62WCI 3205240
63131205100 Frigidaire Screw
