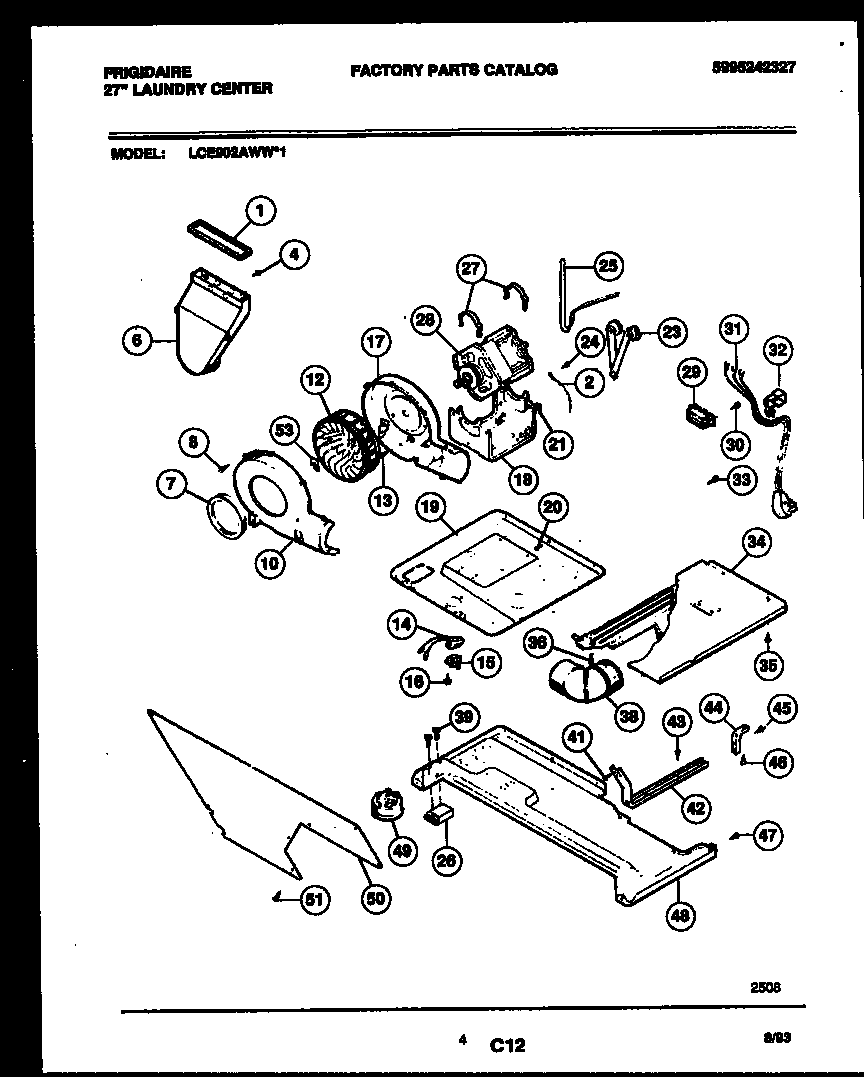

LCE902AWW1 03 – MOTOR, BLOWER AND CABINET PARTS

Products

Position	Product
*82433	131453000 Frigidaire Bushing
1	WCI 131151200
2	WCI 131062205
4	SCREW (2)
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
12	BLOWER WHEEL
14	WCI 5303206879
15	WCI 131073400
16	134178901 Frigidaire Screw
17	WCI 5303271179
19	WCI 3204311
21	WCI 3281077
23	WCI 131131501
25	134503600 Frigidaire Dryer Belt
26	BLOCK-SUPPORT
27	WCI 5303212834
28	WCI 131198500
29	134037400 Frigidaire Block
30	WCI 5308015309
31	WCI 5303212832
32	WCI 3204317
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	SHIELD-ACCESS
36	131168200 Frigidaire Dryer Screw
38	ELBOW
39	131205100 Frigidaire Screw
42	BRACKET (2)
44	3204326 Frigidaire Bracket Assembly
45	WCI 08011280
46	SCREW (2)
48	137455500 Frigidaire Lower Pan Assembly
49	WCI 5303293375
50	SAFETY COVER
51	131302800 Frigidaire Drum Vane Screw
53	5304488479 Frigidaire Washer Hose Clamp
