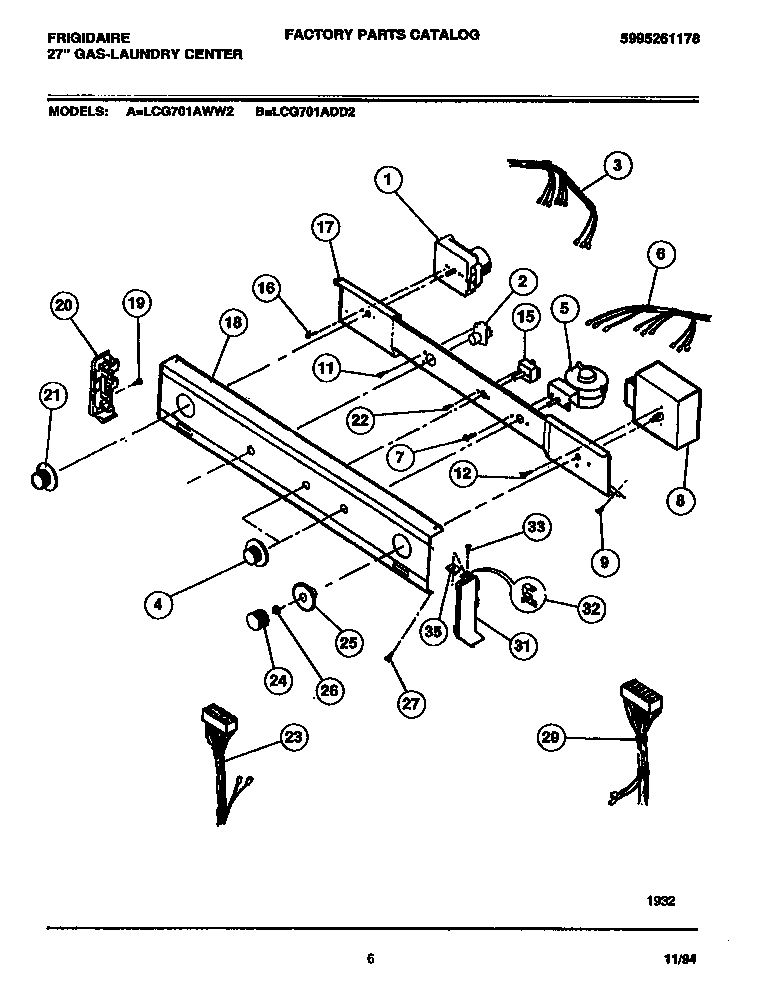

LCG701AWW2 04 – CONSOLE & CONTROLS

Products

Position	Product
*88445	SWITCH-DRYER TEMP
*88446	SPACER PAD-CONTROL PANEL BRACKET (2)
1	WCI 5303269848
2	WCI 5303211158
3	WCI 5303270938
4	131873401 Frigidaire Washer Control Knob
5	WCI 5303209894
6	WCI 131204500
8	WCI 5303271775
9	131168200 Frigidaire Dryer Screw
15	WCI 5308008463
16	218359202 Frigidaire Refrigerator Screw
17	BRACKET-CONTROLS
18	WCI 131224700
19	131243700 Frigidaire Screw
20	WCI 5303211162
21	131873304 Frigidaire Dryer Timer Knob White
22	WCI 3161259
23	WCI 131201900
24	WCI 131167601
25	WCI 131167701
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131200500
31	WCI 5303211167
32	WCI 3204357
33	134156200 Frigidaire Screw
35	CLIP (8)
