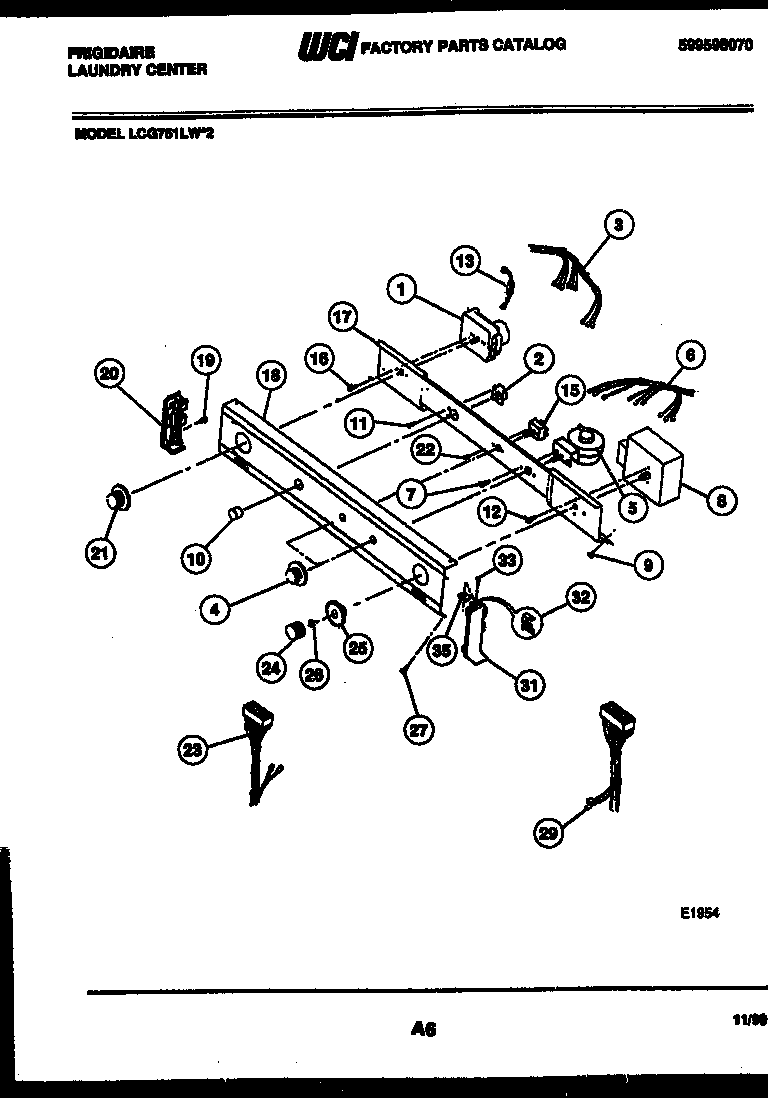

LCG751LL2 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*39639	SPACER PAD-CONTROL PANEL BRACKET (2)
1	WCI 5303212897
2	WCI 3205632
3	WCI 5303211052
4	WCI 3205634
5	WCI 5303209894
6	WCI 5303209141
8	WCI 5303209142
9	131302800 Frigidaire Drum Vane Screw
10	WCI 3205638
11	WCI 08001544
13	RESISTOR, 3.0K
15	SWITCH-WATER TEMP
16	SCREW (2)
17	WCI 3205639
18	WCI 5303209143
19	131168200 Frigidaire Dryer Screw
20	WCI 5303209671
21	KNOB-DRYER
22	WCI 3161259
23	WCI 5303210678
24	WCI 3205643
25	INDICATOR – WASHER TIMER
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 5303209145
31	WCI 5303210650
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
