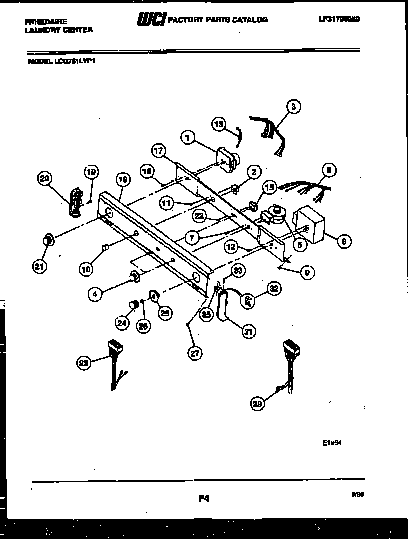

LCG751LW1 05 – CONSOLE AND CONTROL PARTS

LCG751LW1 05 – CONSOLE AND CONTROL PARTS

Written by

in

LCG751LW1 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1DRYER TIMER
2WCI 3205632
3WCI 5303211052
4WCI 3205634
5WCI 5303209894
6WCI 5303209141
8WCI 5303209142
10WCI 3205638
11WCI 08001544
13RESISTOR, 3.0K
15SWITCH-WATER TEMP
16SCREW (2)
17WCI 3204309
17WCI 3205639
19WCI 3204311
20131168200 Frigidaire Dryer Screw
20A131302800 Frigidaire Drum Vane Screw
21WCI 3281077
223205241 Frigidaire Idler Spring
23IDLER ARM
25WCI 3204314
27WCI 3204315
28MOTOR & PULLEY (DRYER)
31WCI 5303207402
32WCI 5303209663
81WCI 08011280
