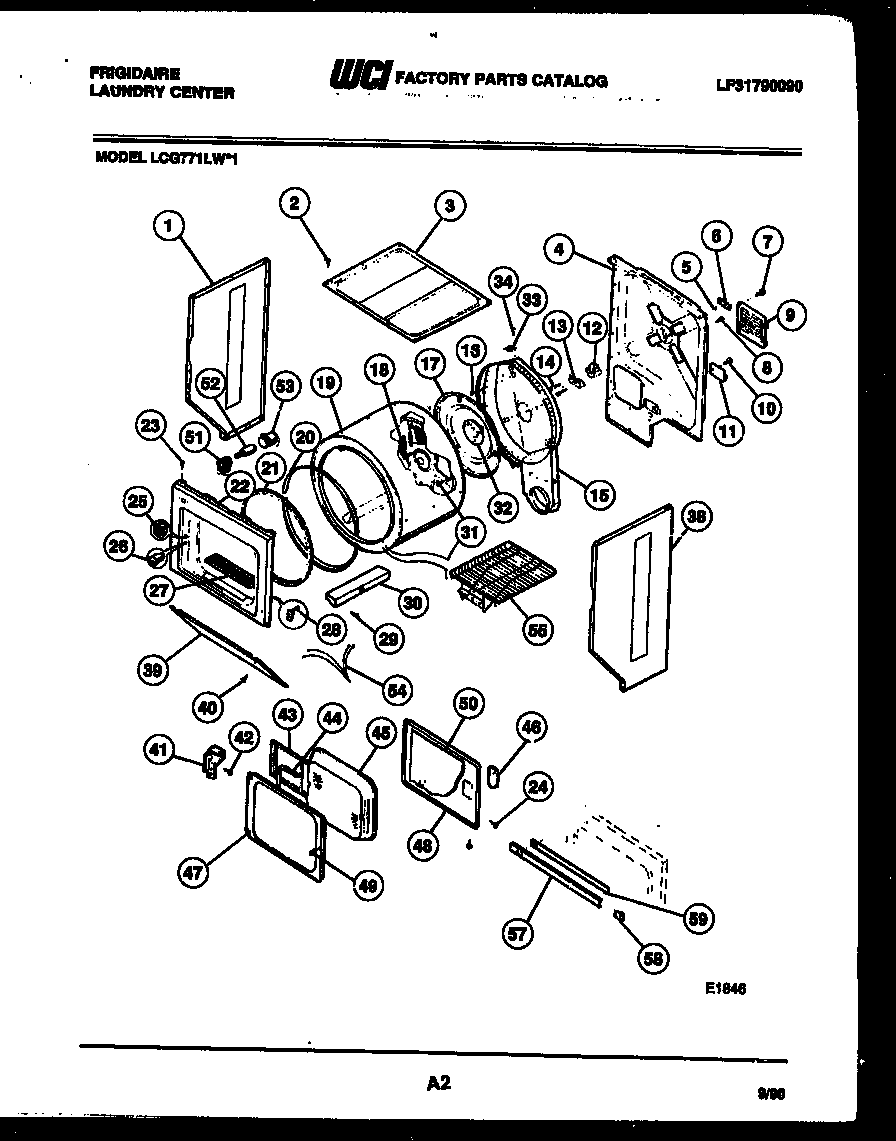

LCG771LL1 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
1	WCI 3204246
3	131883301 Frigidaire Panel
4	PANEL – REAR
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	COVER-TERM BLOCK
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER HOUSING & DUCT
16	131168200 Frigidaire Dryer Screw
17	3204254 Frigidaire Baffle Assembly
18	SCREW (3) (PART OF REAR BEARING KIT.)
19	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20	(RING) BEARING
21	WCI 3204260
22	PANEL – FRONT – WHITE
22	WCI 3204262
23	WCI 08011280
24	SCREW (8)
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	DOOR-SWITCH
27	WCI 3204264
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	WCI 5303207393
32	5303931781 Frigidaire Shaft
33	WCI 5303207396
38	WCI 3204272
39	WCI 3204274
40	SCREW
41A	HINGE-LOWER
41	HINGE-UPPER
42A	131302800 Frigidaire Drum Vane Screw
46	WCI 3204282
47	WCI 5303207398
48	WCI 3204285
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
51	WCI 3204287
52	WCI 5308027430
53	WCI 3204288
55	WCI 3204290
57	WCI 5303211063
58	WCI 5303208614
59	ADHESIVE STRIP
