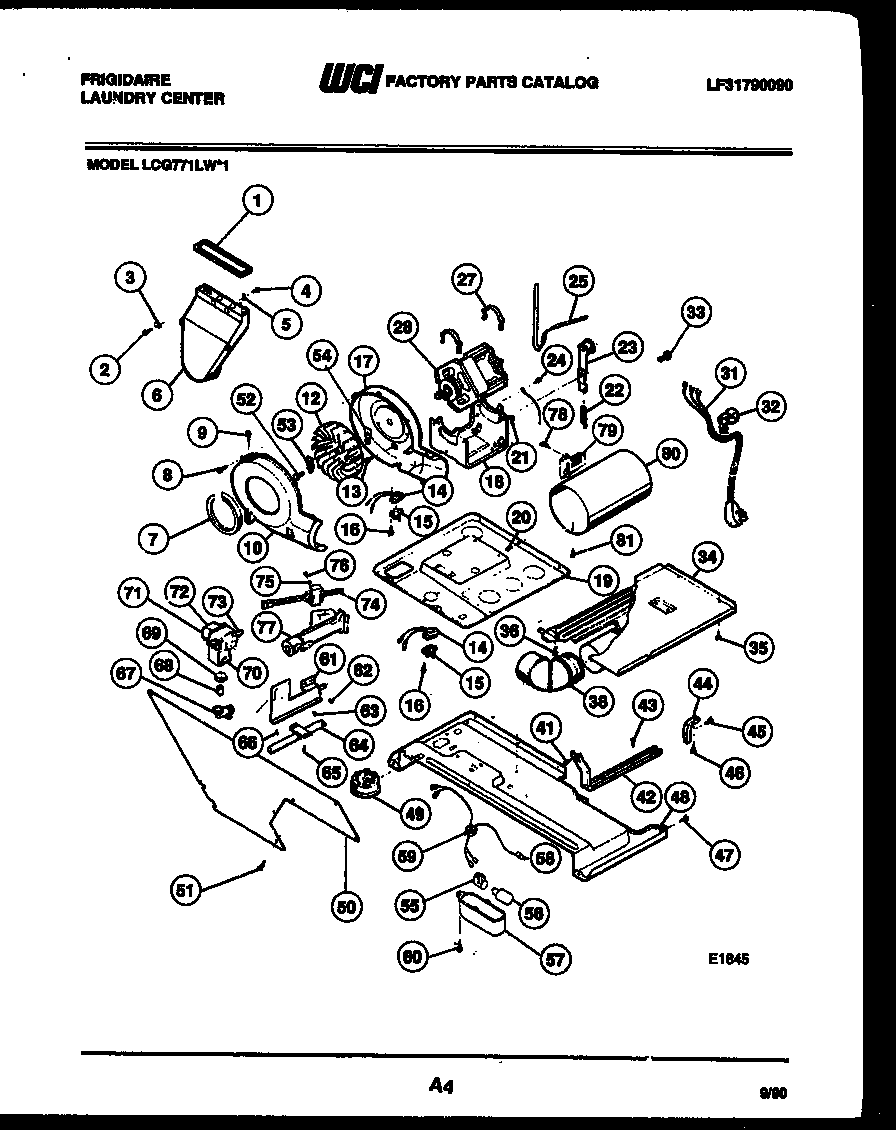

LCG771LL1 03 – MOTOR, BLOWER AND CABINET PARTS

Products

Position	Product
*34773	PCK3100 Frigidaire Conversion Kit
*34773	WCI 5303209664
*34773	WCI 5303937054
1	SEAL – AIR DUCT
4	5303300265 Frigidaire Oven Screw
5	CLIP (8)
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
10	WCI 3204301
12	WCI 3205233
14	WCI 5303207400
15	CONTROL THERMOSTAT
16	134178901 Frigidaire Screw
17	WCI 3204309
19	WCI 3204311
20	131168200 Frigidaire Dryer Screw
21	WCI 3281077
22	3205241 Frigidaire Idler Spring
23	IDLER ARM
25	WCI 3204314
27	WCI 3204315
28	MOTOR & PULLEY (DRYER)
31	WCI 5303207402
32	WCI 5303209663
33	134154100 Frigidaire Screw 10-32 x 0.375 Co
34	WCI 5303207403
38	ELBOW
42	BRACKET (2)
44	3204326 Frigidaire Bracket Assembly
46	SCREW (2)
48	WCI 3204327
49	SWITCH-PRESSURE
50	SAFETY COVER
51	131302800 Frigidaire Drum Vane Screw
52	WCI 3205238
53	CLAMP-FRONT
54	WCI 3205237
55	WCI 3204287
56	WCI 5308027430
57	WCI 5303209106
58	WCI 5303209107
59	WCI 5303209108
61	BRACKET-VALVE
63	131243800 Frigidaire Screw
64	WCI 5303207405
67	VALVE-ANGLE
68	TAIL PIECE
69	NUT-HEX UNION
70	DRYER GAS VALVE
71	5303931775 Frigidaire Dryer Coil Kit
73	5303207410 Frigidaire Orifice
73A	5303207411 Frigidaire Orifice
74	5303937186 Frigidaire Dryer Flat Igniter Assembly
75	5300809968 Frigidaire Dishwasher P-1 Washer
76	WCI 5303281150
77	WCI 5303207412
79	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80	131712405 Frigidaire Tube
81	WCI 08011280
